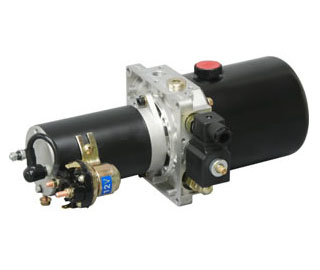

• DC Hydrauic Power Pack for Electric Forklift
  Stable Electric System; Supply to the Major Material Handling Manufacturers in Korea and China
  Model No : KP022-P5-18-8V Electric Motor : DC 12/24V, 1.6~3.0KW; Hydraulic Pump : 1.6-4.2cc/rev; Oil Tank : 4-12L; Hydraulic Circuit : PT for Manual control Valve ...

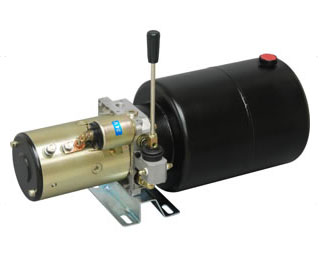

• DC Hyraulic Power Pack for Electric Stacker
  Elevating by Electric motor and Lowering by Hand with one lever; Soft Working Lever With Double Contactor Switch
  Model : KP021-L6-14-8H-MT Electric Motor : DC 12/24V, 1.6~3.0KW; Hydraulic Pump : 1.6~4.2cc/rev; Oil Tank : 4~12L; Hydraulic Circuit : Manual lift valve ...
• DC Hydraulic Power Pack for Electric Working Table
  Minimized System for Narrow Space; Suitable for Varying Load System; Supply to the Major Material Handling Manufacturer in Korean and China
  Model : KPM21-L1-14-2H-P4; Electric Motor : DC 12/24v, 0.5/0.8KW ...

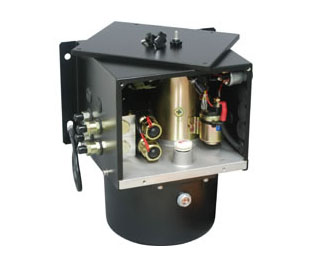

• DC Hydraulic Power Pack for Wingbody
  Special Manifold for SPV System; All In One System Including Electric Control;Strong for Severe Circumstance like Hot & Cold Temperature or Vibration
  Model : KP021-X5-18-6V-D2; Electric Motor : DC 12/24V, 1.6~3.0KW ...
• DC Hydraulic Power Pack for Tail Lift
  Easy to Maintenance with 3 Side Open; All In One System Including Electric Control;Strong for Severe Circumstance like Hot & Cold Temperature or Vibration
  Model : KP021-LG1-4V-2S; Electric Motor : DC 12/24V, 1.6~3.0KW ...
• DC Hydraulic Power Pack for Wheelch Lift
  Safety with Thermal S/W, Pressure S/ W; Low Profile System for Narrow Space
  Model : KP011-WM2-7-2V-HP; Electric Motor : DC 12/24V, 0.5~2.2KW; Hydraulic Pump : 0.2~2.5cc/rev; Oil Tank :0.5L, 1.0L; Hydraulic Circuit : Lift circuit with emergency hand pump ...

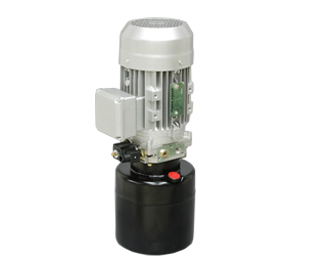

• AC power pack for 2 Post Lift
  Standard Type Motor with Bell Housing; High Quality Parts for Durability
  Model : KP323-L5-18-12V; Electric Motor : AC 3Phase 220/380V, 0.75~2.2KW; Hydraulic Pump : 1.0~4.2cc/rev; Oil Tank : 12L, 15L; Hydraulic Circuit : 2 Post lift system ...
• AC Powr pack for 4 Post Lift
  Standard Type Motor with Bell Housing; Special Block for 4 Post Lift
  Model : KP323-L5-18-15V-4PL;Electric Motor : AC 3Phase 220/380V, 0.75~2.2KW; Hydraulic Pump : 1.0~4.2cc/rev; Oil Tank : 12L, 15L; Hydraulic Circuit : 4 Post lift system ....
• AC Power Pack for Scissors Lift
  Wide Range of Specification (Motor, Gear pump, Cylinders and etc. ); Very Stable System with Long term Experience
  Model : KP333-L7-14-12H; Electric Motor : AC 3Phase 220/380V 0.5~3.7KW; Hydraulic Pump : 0.25~9.8cc/rev; Oil Tank : 1~25L; Hydraulic Circuit : Lift system ....
• AC Power Pack for Tower Crane
  SPECIAL SYSTEM FOR TOWER CRANE :By customer’s request.
  SPECIFICATION:
  Model : KP-TCRB-303-05 ...

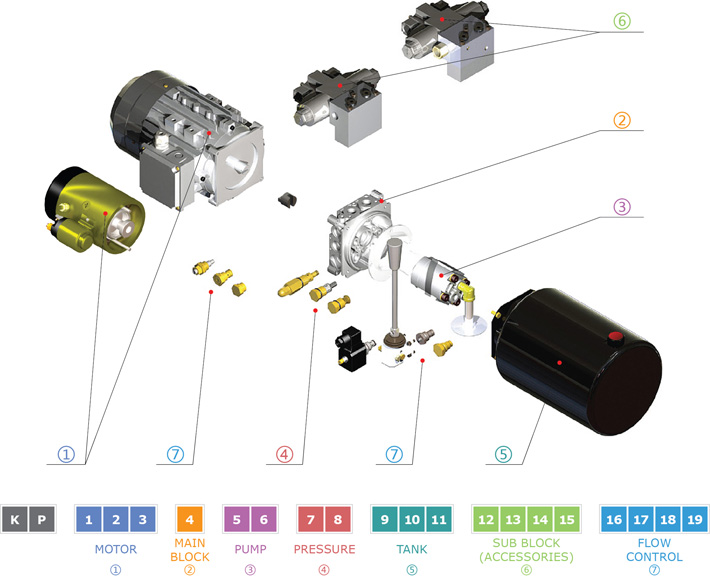

Hydraulic Power Pack

1. The functional components are made with aluminum or hardened steel parts for best reliability and long life.
2. The gear pump are manufactured with pressure balanced compensation plates. This technology reduces the mechanical clearings at the pressure increase, thus greatly improving the hydraulic efficiency, reducing heat generation and energy consumption.
3. The integral motors are designed and optimized for typical mini power pack applications offering high starting torque, high power density and efficiency.
4. Flexibility & Modularity.
5. Easy to be assembled and commissioned.

Hydraulic Power Pack

• Hydraulic Power Pack PDF
