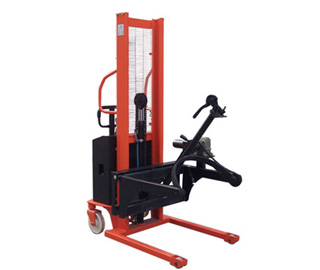

Electric-hydraulic Drum Stacker.
Detail specification.
Suitable for handling, stacking drums, turning over and dumping materials.
Hand push and pull, electric lifting, option for electric or hand turning over.
Easy to operate, reduces effort highly effective.
Imported power unit configuration, reliable performance.
Specifications of COD0.5P Electric Drum Truck:
Model | COD0516- P | COD0525-P | COD0530-P | |
---|---|---|---|---|
Capacity Q | kg | 500 | 500 | 500 |
Lifting height h | mm | 1600 | 2500 | 3000 |
Transport mode | hand | hand | hand | |
Lifting mode | electric | electric | electric | |
Feeding mode | electric | electric | electric | |
Clamp diameter | mm | 600 | 600 | 600 |
Min turning radius Wa | mm | 1200 | 1200 | 1200 |
Lifting motor V | Kw | 12/1.6 | 12/1.6 | 12/1.6 |
Accumulator V/Ah | V/Ah | 12/120 | 12/120 | 12/120 |
Charger | V/Ah | 220/100 | 220/100 | 220/100 |
Overall Length l1 | mm | 1200 | 1200 | 1200 |
Overall Width b | mm | 800 | 800 | 800 |
Overall height h1 | mm | 2100 | 1680 | 2100 |
N. W | kg | 380 | 450 | 500 |
