1. Low Center of Gravity and small turning radius ensures the stable and convenient operations.
2. Hydraulic steering system with "H" structure steering axle improves the reliability of steering and make steering system more compact and convenient to install and maintain.
3. DC Driving motor and Electric Controller makes the speed adjustable and the operation stable & comfortable.
4. Safer operations by adding over-load protection and short circuit protection.
5. Equipped with high-quality battery and multi-function display.
6. Overloading and short circuit protection device.

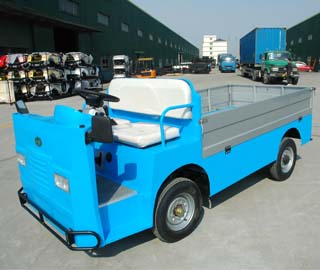

Specifications of SH-DB-XS:
| Model | SH-1DB-XS | SH-2DB-XS | |
|---|---|---|---|
| Max. Loading Capacity | kg | 800 | 1500 |
| Passenger Capacity | 2 | 2 | |
| Voltage | V | 48 | 48 |
| Motor Power | kw | 3 | 5 |
| Range(loaded) | km | 70 | 60 |
| Max. Speed | km/h | 35 | 40 |
| Min. Turning Radius | m | 4.3 | 4.3 |
| Climbing Ability(loaded) | 20% | 20% | |
| Overall Dimensions | mm | 3415X1390X1200 | 3475X1390X1300 |
| Trailer Max. Loading Capacity | kg | 800 | |
| Trailer Dimensions | mm | 2500*1500*700 |
Remark:
1. Special lifting height available.
2. Attachment available.
3. The specification in the table are for standard models only. For further information, please contact us.
