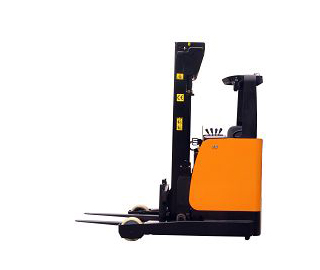

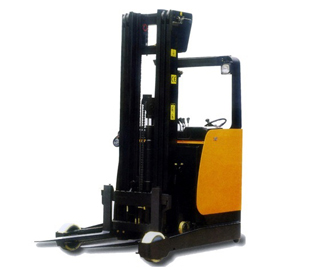

The Reach Trucks are used wherever the space is confined and where heavy loads need to be raised to highlift heights.
1. The drive's compartment, through generous dimensioning, provides the driver with a comfortable body position. The excellent all-around visibility and the low noise level ease the operation.
2. The operator compartment has incorporate controls for hydraulic functions, direction control, horn, lights and handbrake, all within convenient reach of the operator. Padded armrest, rubber floor mat and resin coated control knobs ensure comfort for daylong operation. The tilt of the steering column can be freely adjusted to any degree.

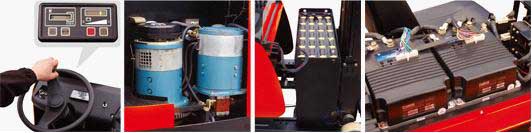

3. Curtis is made of Multi-function instrument, together with the multi display monitor provide information and function input for the operator to allow optimum perfrmance and operator confidence.
4. Drive and hydraulic control fitted as standard. MOSFET CHOPPER, Power transistors with high impulse frequencies control the motor in an energy saving and noiseless manner. The drive control provides a jerk-free start and a strong acceleration. Adjustable energy feedback on releasing the drive pedal through regenerative braking.
5. The chassis design and steering geometry provide an outstanding turning radius of 1675mm and reach stroke of 602mm (1.4 ton model). The steering angle of 90。in each direction enhances maneuverability. These specifications ensure improved safety clearances in confined spaced with high loading.
6. Low noise, less pollution and energy saving, these features match up with environment protection requirement.
7. Drive and electronics cover can be opened quickly and easily for servicing and maintenance work. The service access door on the truck provides excellent access to the major service components. Motor, drive gearbox, pumps, brakes and steering are easily accessible.
8. Multiple benefits of the AC power System include: fast response to operating commands, precise power control, compact components. Moreover, since the AC motor does not use contactors and brushes, these maintenance items will no longer be required. Operator will be able to feel the difference by the truck's new design and performance.

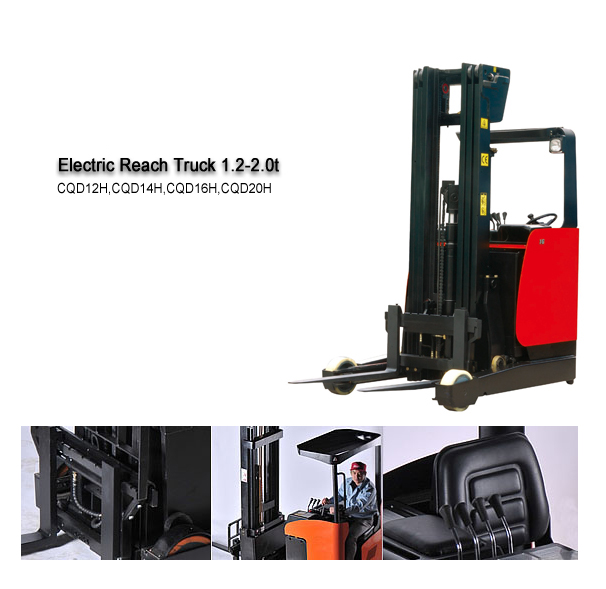

Specifications of CQD-H Electric Reach Forklift:
Model | CQD12H | CQD12H-C1 | CQD14H | CQD14H-C1 | CQD16H | CQD16H-C1 | CQD20H | CQD20H-C1 | |
---|---|---|---|---|---|---|---|---|---|
Capacity | kg | 1200 | 1200 | 1400 | 1400 | 1600 | 1600 | 2000 | 2000 |
Lifting height | mm | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
Overall width | mm | 1240 | 1240 | 1240 | 1240 | 1240 | 1240 | 1240 | 1240 |
Turning radius | mm | 1675 | 1675 | 1675 | 1675 | 1675 | 1675 | 1675 | 1675 |
Working aisle width with pallet (Ast)(pallet:W*B=1200*1000) |
mm | 2825 | 2825 | 2825 | 2825 | 2825 | 2825 | 2825 | 2825 |
Working aisle width with pallet (Ast)(pallet:W*B=800*1000) |
mm | 2600 | 2600 | 2600 | 2600 | 2600 | 2600 | 2600 | 2600 |
Travel speed | km/h | 10.2 | 10.2 | 10.2 | 10.2 | 10.2 | 10.2 | 10.2 | 10.2 |
Weight | kg | 2850 | 2850 | 2850 | 2850 | 3000 | 3000 | 3250 | 3250 |
Remark:
1. Special lifting height available.
2. Attachment available.
3. The specification in the table are for standard models only. For further information, please contact us.
