1. Simple structure ; Good-looking appearance.
2. One cylinder system guarantees:
a. No risk of oil leakage;
b. No risk of dropping to the second piston suddenly.
3. Newest handle design:
a. Has a nice appearance;
b. Operates comfortably;
c. Meets ergonomic requirements.
3. The quick lift function double lift speed for loads weighing 550 lbs or less.
4. Built-out battery and charger resulting in a low center of gravity and excellent manoeuvrability.
5. Conforms to CE safety standard.
6. Conforms to EN1757-4.

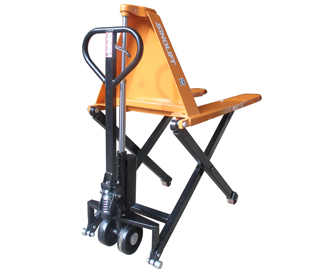

The manual high lift pallet truck offers the user an efficient and versatile tool for material handling.
Improved safety: automatic activation of self adjusting stabilizers when lifting loads higher than 400 mm for maximum stability and optimu breaking.
Greater stability: Extra long front legs increase the stability when handling unevenly loaded pallets.
Quick-lift operation: Quick-lift function doubles the lifting speed when lifting loads less than 250kg.
Easy maneuvering of loads throughout work place.
Easy placing of load to correct ergonomic work height.
Specifications of NPH High Lift Pallet Truck:
Model | NPH1000 | NPH1500 | NPH1000(N) | |
---|---|---|---|---|
Capacity | (kg) | 1000 | 1500 | 1000 |
Total lift height | (mm) | 800 | 800 | 800 |
Lowered fork height | (mm) | 85 | 85 | 85 |
Size of fork | (mm) | 162x50 | 162x50 | 162x50 |
Fork length | (mm) | 1150 | 1150 | 1150 |
Width over the forks * | (mm) | 520/550/685 | 520/550/685 | 550/680 |
Height of handleless | (mm) | 975 | 1050 | 975 |
Steering wheel | (mm) | Ø150x50 | Ø150x50 | Ø180x50 |
Fork wheel | (mm) | Ø74x50 | Ø74x50 | Ø74x50 |
Truck weight | (kg) | 112 | 125 | 133 |
pcs/20" container | (pcs) | 120 | 100 | 72 |
Remark:
1. Fork length can be changing with special requirments.
2. NPH1000(N) is one-clyinder-system.
