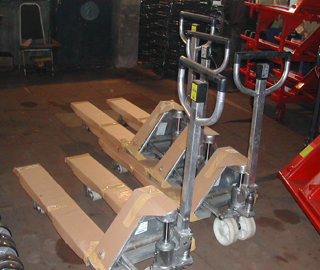

1. Galvanized, Zinc and Chrome Plated.
Designed for corrosive or wet environments these full featured pallet trucks were designed for chemical, pharmaceutical and wash down.
2. Stainless Steel and Stainless Steel Frame & Forks.
Ideal for sanitary, pharmaceutical, medical, food and wet environments. Choose either 304 stainless steel pallet truck for long life in even the most harsh environments.
These pallet trucks are available made with different
types of finishes, For American markets, standard specifications is all with a 5, 500 pound capacity and a service range of 2 7/8" to 7 3/4". Forks are 27" wide x 48" long.
Specifications of NPG Galvznized Pallet Truck:
Model | NPG20 | NPG25 | |
---|---|---|---|
Capacity Q | kg | 2000 | 2000 |
Min. fork height h | mm | 85 | 75 |
Max. fork height h1 | mm | 200 | 190 |
Steering wheel | mm | Φ200x50 | Φ180x50 |
Load roller Single | mm | Φ82x93 | Φ74x93 |
Load roller Tandem | mm | Φ82x70 | Φ74x70 |
Size of fork | mm | 160x60 | |
Width overall forks B | mm | 520/540/685 | |
Fork length I | mm | 1100/1150/1220 |
