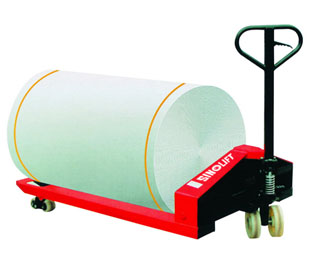

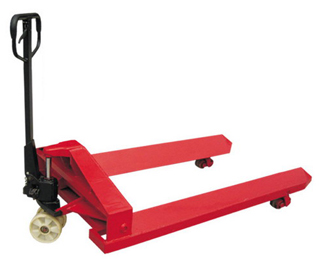

1. For handling cylindrical loads where the lifting operation is achieved without pallets cylindrical loads can be lifted directly from the floor, transported, and deposited in their un-palletized state. This Roll Pallet truck is mainly designed for carrying horizontal transport loads such as rolls, reels, cable drums etc.
2. WHEN CALLING, BE READY TO SPECIFY THE ROLL DIAMETER, ROLL LENGTH AND
WHETHER THE ROLL IS HARD OR SOFT.
Specifications of NPR Roll Pallet Truck:
Model | NPR20S | NPR20M | NPR20L | NPR20SL | |
---|---|---|---|---|---|
Capacity Q | kg | 2000 | |||

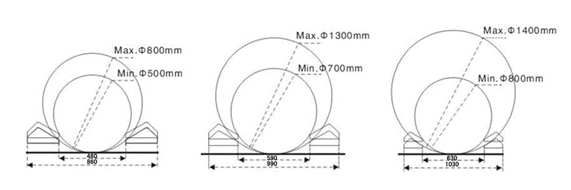

Reel diameter | mm | 400-600 | 600-800 | 800-1200 | 1200-1600 |
With overall forks B | mm | 760 | 850 | 1000 | 1150 |
Steering wheel | mm | Φ200x50 | |||
Load roller Single | mm | Φ82x93 | |||
Load roller Tandem | mm | Φ82x70 | |||
Fork length l | mm | 800/900/1000/1100/1150/1220 |
