1. The SAC is developed for industrial applications and is protected against water, dust and shocks.
2. The exchangeable battery module provides for 35 hours of use, and makes it possible to use the hand pallet truck without weighing when charging the battery.
3. Quick exchange battery mount (extra battery can be purchased).
4. Load cells, cabling IP67 and indicator IP65 protection.
5.10 greasable bushings ensure a long service life.

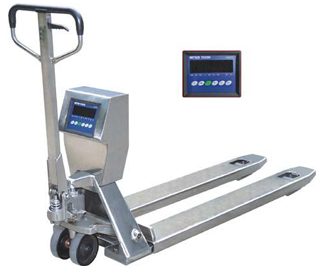

This Hand Pallet truck with scale combines the controlling function of a very accurate weighing system with the mobility and flexibility of a hand pallet truck. You weigh pallets and containers during transport, at the place of the handling. You save time when checking incoming and outgoing goods.

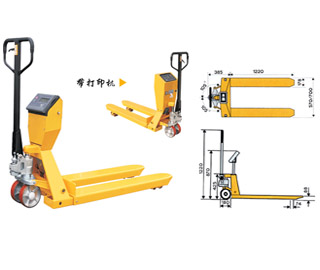

Specifications of SAC Scale Pallet Truck:
Model | SAC-20H | SAC-20L | ||
---|---|---|---|---|
Capacity Q | kg | 2000.00 | 2000.00 | |
Min. fork height h | mm | 88 | 76 | |
Max. fork height h1 | mm | 200 | 190 | |
Steering wheel | mm | Φ180x50 | Φ180x50 | |
Load roller Single | mm | Φ74X93 | Φ64x93 | |
Load roller Tandem | mm | Φ74x70 | Φ64X70 | |
Size of fork e*s | mm | 178x60 | 178x60 | |
Width overall forks B | mm | 568/703 | ||
Fork length I | mm | 1150/1220 | ||
Power | DC5v, I≤1.5A | |||
Option of Printer | Port | Serial | ||
Paper | 44.5mm/1 3/4in(width)x Φ40mm/1.6in(dia) | |||
Battery | DC7.2v, 5000mAh(rechargeable battery); | |||
Charger | AC 110~240V |
