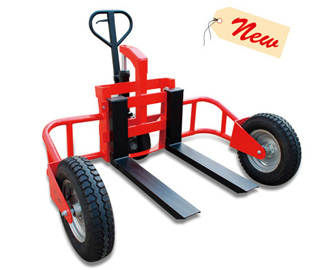

Rough Terrain Trucks RP·A series
1. Great equipment to move heavy loads up till 1250kg.
2. Ergonomic design of the frame to reduce the operation effort.
3. Meanwhile the truck is robust enough for the purpose to work outside such as builders yard, garden centers where there's only an occasional need for moving pallets by forklifts or where no ordinary forklift or even pallet truck can go. The fork is adjustable for special dimension pallet.

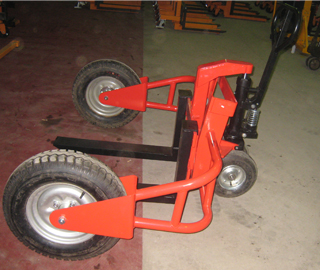

This special terrain hand pallet truck is the latest edition to our range designed for applications such as builders yards, garden centers or out on site where there is only an occasional need for moving pallets by forklifts or where no ordinary forklift or even pallet truck can go (for example rooftops where forklifts aren't allowed). Thanks to its large wheels and straddle forks arrangement it can be used for any type of pallet on uneven ground.

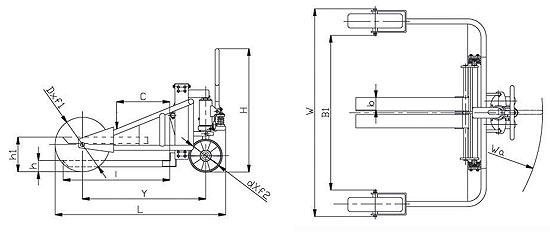

Specifications of RP-A Terrain Pallet Truck:
Model | RP1000A | RP1250A | |
---|---|---|---|
Rated Capacity | (kg) | 1000 | 1250 |
Max. Fork Height | h1 (mm) | 240 | 240 |
Min. Fork Height | h (mm) | 70 | 70 |
Fork Length | l (mm) | 800 (860) | 800 (860) |
Load Center | C (mm) | 400 (430) | 400 (430) |
Adjustable Fork Width | (mm) | 216-680 | 256-680 |
Individual Fork Width | b (mm) | 100 | 120 |
Distance inside the Front Wheel | B1(mm) | 1230 | 1230 |
Axle Distance between front Wheel and rear steering wheel |
Y (mm) | 973 | 973 |
front Load Wheel (Dia. ×Wid) | (mm) | Ø568X145 | Ø568X145 |
Rear Steering Wheel (Dia. ×Wid) | (mm) | Ø250 | Ø250 |
Turn Radius | Wa (mm) | 1500 | 1500 |
Overall Size (L×W×H) | (mm) | 1406X1670X1280 | 1406X1670X1280 |
Net Weight | (kg) | 210 | 238 |
