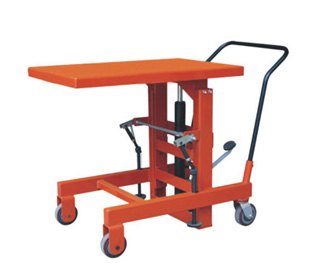

Design for lifting, positioning and transporting heavy loads in the shop, warehouse and office.
Foot Pump hydraulic ally raises platform.
Double Heavy-duty cylinder.
Option:
1. All lifting table trucks have two kinds of lowering systems wire or nut.
2. Handle with plate protection.
3. Handle with rubber.
Specifications of CYT-P series Hand Table Truck:
| Model | CYT36P | CYT48P | CYT60P | |
|---|---|---|---|---|
| Capacity Q | kg | 908 | 908 | 908 |
| Dimension of Table(LXW) | mm | 915x610 | 915x610 | 915x610 |
| Min. table height h2 | mm | 609 | 762 | 915 |
| Max. table height h1 | mm | 915 | 1220 | 1524 |
| Lifting speed | mm/s | ≥7 | ≥7 | ≥7 |
| Lowering speed | Adjustable | Adjustable | Adjustable | |
| Overall length | mm | 1250 | 1250 | 1250 |
| Overall width | mm | 660 | 660 | 660 |
| Overall height | mm | 970 | 970 | 970 |
| Outer dia. of the front wheel | mm | 125 | 125 | 125 |
| Outer dia. of the rear wheel | mm | 125 | 125 | 125 |
| Net weight | kg | 120 | 130 | 140 |
