All welded steel frame, durable and reliable.
AC, DC motor or foot pump is available.
Deal for portable work station.
Integrated power pack, heavy-duty cylinder with velocity fuse and pressure compensated down speed control valve.
Special sizes are available upon request.

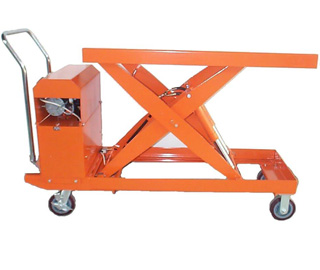

Specifications of CYTD Single Scissors Table Truck:
| Model | CYTD300 | CYTD500 | CYTD1000 | |
|---|---|---|---|---|
| Load Capacity | (kg) | 300 | 500 | 1000 |
| Min. Height | h(mm) | 288 | 288 | 380 |
| Max. Height | H(mm) | 900 | 900 | 1000 |
| Table Dimension | L×C(mm) | 815×500×50 | 815×500×50 | 1200x610x50 |
| Overall Length | B(mm) | 1085 | 1085 | 1600 |
| Lifting Speed | (s) | ≤10 | ≤10 | ≤9 |
| Lowering Speed | (s) | ≤10 | ≤10 | ≤15 |
| Lifting Motor | W | 800 | 800 | 800 |
| Battery | V/Ah | 24V/33Ah | 24V/33Ah | 24V/33Ah |
| Charger | 24V/5A | 24V/5A | 24V/5A | |
| Weight | (kg) | 111 | 114 | 250 |
