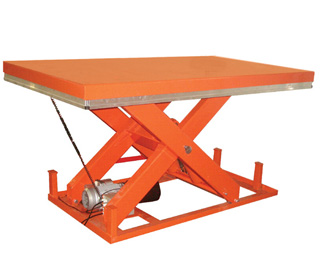

Large Lift Table
Standard Safety Features:
Upper platform fitted with aluminum safety bar preventing descent on contact with obstructions;
Low-tention (24V) control box with up-down buttons;
Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed;
Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of horse burst;
Safety clearance between scissors to prevent trapping during operation.
Other Standard Features:
Self lubricating bushings on pivot points;
Removable lifting eye to facilitate handling and lift table installation.
Specifications of ET Electric Static Lift Table:
Model | ET1001 | ET1002 | ET2001 | ET2002 | ET4001 | ET4002 | ET5001 | ET5002 | |
---|---|---|---|---|---|---|---|---|---|
Rated Capacity | kg | 1000 | 1000 | 2000 | 2000 | 4000 | 4000 | 5000 | 5000 |
Min. Height of Table | mm | 205 | 205 | 230 | 230 | 240 | 240 | 500 | 500 |
Max. Height of Table | mm | 1000 | 1000 | 1050 | 1050 | 1100 | 1100 | 1600 | 2000 |
Table Dimensions | mm | 820x1300 | 1000x1600 | 850x1300 | 1000x1600 | 1200x1700 | 1200x2000 | 1220×2440 | 1500x2500 |
Weight | kg | 160 | 186 | 235 | 268 | 375 | 405 | 520 | 590 |
Packing Dimensions | mm | 1310x820 x210 |
1610x1010 x210 |
1310x860 x240 |
1610x1010 x240 |
1710x1210 x250 |
2010x1210x250 | 2450x1230 x280 |
2510x1510 x280 |
