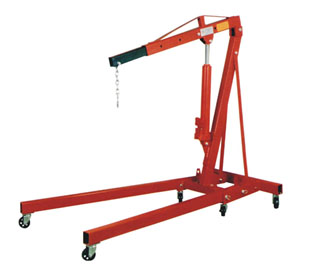

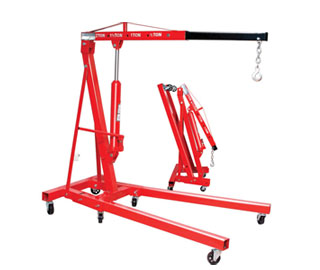

Mobile floor crane:
1. Designed for heavy-duty lifting, loading and positioning.
2. Ruggedly-constructed; will give dependable, long-lasting use Standard handpump hydraulic lift cylinder.
3. Lifts load from 0 mm to 2000 mm.
4. Available capacity: From 500 Kgs to 2000 Kgs.
5. Available Options: Electric operated & Battery operated.
Specifications of SP Shop Crane
| Model | SP500F | SP1000F | SP2000F | SP2000 | |
|---|---|---|---|---|---|
| Foldable | Yes | No | |||
| Capacity | kg | 500 | 1000 | 2000 | 2000 |
| Capacity at position | P1 | 500 | 1000 | 2000 | 2000 |
| P2 | 400 | 750 | 1500 | 1500 | |
| P3 | 250 | 500 | 1000 | 1000 | |
| P4 | 150 | 250 | 500 | 500 | |
| A | mm | 1403 | 1650 | 1403 | 1350 |
| B | mm | 200 | 170 | 200 | 185 |
| C | mm | 1710 | 1680 | 1710 | 1620-2320 |
| D | mm | 900 | 1160 | 900 | 1270 |
| E | mm | 180 | 95 | 180 | 225 |
| W1 | mm | 810 | 500 | 810 | 945-1340 |
| W2 | mm | 1015 | 1070 | 1015 | 800-960 |
| H1 | mm | 345 | 550 | 345 | 185 |
| H2 | mm | 1820 | 1785 | 1820 | 1945 |
| H3 | mm | // | 180 | // | 485 |
| H4 | mm | 2240 | 1845 | 2240 | 2410 |
| Net Weight | kg | 75 | 96 | 95 | 113 |
