Description:

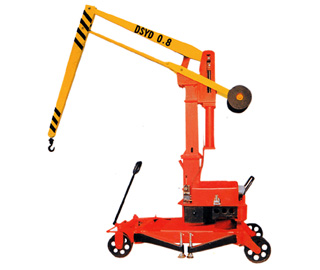

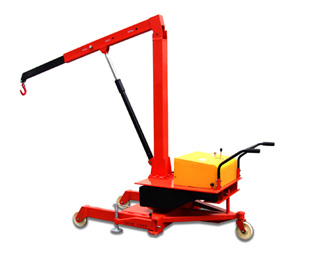

1. Counterbalanced Mobile Floor Cranes.
2. Counterbalanced design eliminates the need for front legs. Allows for easier maneuverability in tight and hard to reach areas. Boom is raised with a hydraulic power pack.
3. The crane is fitted with large wheels and castors which enables it to travel over offshore grating with ease and has four lifting points fitted for transportation by platform crane.
4. The Crane is painted to offshore specification and is supplied with load test and NDT certs, a four wire rope sling and work instruction.
Specifications of Mobile Power Counterbalanced Crane
Model | Unit | DYQ30 | DYQ40 | DYQ60 |
---|---|---|---|---|
Rated capacity* | kg | 300 | 400 | 600 |
Min lifting height h1 * | mm | 780 | 970 | 1160 |
Max lifting height h2 * | mm | 3240 | 3050 | 2860 |
Max turning radius R * | mm | 2150 | 1825 | 1500 |
Front wheel | mm | Φ180 | ||
Rear wheel | mm | Φ180 | ||
Working power | V | 12 | ||
Battery | V/Ah | 12 / 180 | ||
Dimensions(L×W×H) | mm | 2530×1100×2310 |
