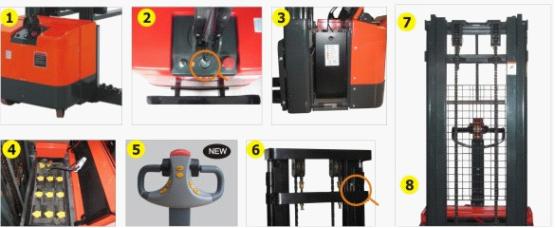

1. Durable and rigid frame construction ensure the stackers to handle heavy loads.
2. Hourmeter and BDI(Battery Discharge Indicator)on time informs the operator of recharge requirements.
3. Sideway battery exchange to reduce intervals, ensure working efficiency and productivity.
4. A wide choice of battery capacity and size enable the truck to be correctly configurated to match application needs.
5. Tilter head ergonomically designed for maximum operator comfortable, and control buttons positioned to allow operation with either hand.
6. limit switch mounted on top of mast to precisely set the max. Lifting height, avoid any risk of lifting motor overload.
7. Robust and rigid mast configuration optimize stackers lifting stability and safety.
8. Safe Grid covered on the mast to protect operator from any injured risk.

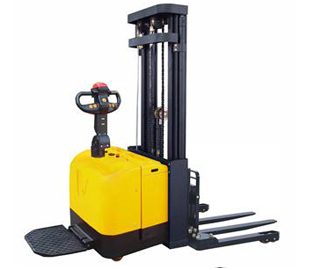

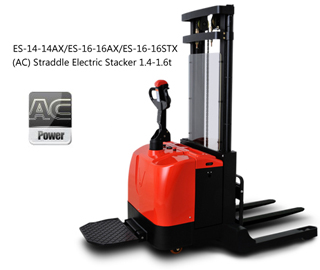

Specifications of ES-16-16AX Full-electric Pallet Stacker:
Manufacturer | SINOLIFT | SINOLIFT | SINOLIFT | |
---|---|---|---|---|
Model designation | ES-14-14AX | ES-16-16AX | ES-16-16STX | |
Drive unit | Battery | Battery | Battery | |
Operator type | Walkie/ Rider | Walkie/ Rider | Walkie/ Rider | |
Load capacity | Q (kg) | 1400 | 1600 | 1600 |
Tyre type | PU/PU | PU/PU | PU/PU | |
Height, mast lowered | h1 (mm) | 1980/ 2135/ 2335/ 2500 | 1980/ 2135/ 2335/ 2500 | 2135 |
Lift height | h3 (mm) | 3000/ 3300/ 3600/ 4000 | 3000/ 3300/ 3600/ 4000 | 4000/ 4500/ 5000 |
Height of straddle arms or load wheel casing | h8 (mm) | 100 | 100 | 100 |
Fork height, lowered | h13 (mm) | 85 | 85 | 85 |
Overall length (out leg/ fork) | l1 (mm) | 1995 | 1995 | 2055 |
Overall width | b1/ b2 (mm) | 1470 | 1470 | 1470 |
Fork dimensions | s/ e/ l (mm) | 40/100/1050 | 40/100/1050 | 40/100/1050 |
Fork carriage width | b3 (mm) | 812 | 812 | 812 |
Width between straddle arms | b4 (mm) | 1270 | 1270 | 1270 |
Aisle width, 1000×1200 pallet crossways | Ast (mm) | 2260 | 2260 | 2260 |
Aisle width, 800×1200 pallet lengthways | Ast (mm) | 2230 | 2230 | 2230 |
Outer turning radius | Wa (mm) | 1975/ 1565 | 1975/ 1565 | 2040/ 1630 |
Travel speed, laden/ unladen | km/ h | 3-5 / 3-5 | 3-5 / 3-5 | 3-5 / 3-5 |
Lifting speed, laden/ unladen | m/ s | 0.13 / 0.23 | 0.13 / 0.23 | 0.13 / 0.23 |
Lowering speed, laden/ unladen | m/ s | 0.13 / 0.23 | 0.13 / 0.23 | 0.13 / 0.23 |
Maximum gradeability, laden/ unladen S2 5 min. | % | 5/7 | 5/7 | 5/7 |
Drive motor rating S2 60 min. | kW | 1.5 | 1.5 | 1.5 |
Lift motor rating at S3 15% | kW | 3 | 3 | 3 |
Battery voltage/ rated capacity (5h) | V/ Ah | 24/ 280 | 24/ 280 | 24/ 280 |
Battery weight (with box) | kg | 228 | 228 | 228 |
Type of drive control | AC | AC | AC | |
Manufacturer | CURTIS | CURTIS | CURTIS | |
Steering | Power steering | Power steering | Power steering |
