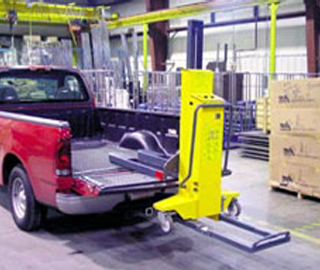

1. Unique design to climb onto the loadplatform with easy care.
2. Easy loading and unloading.
3. Lifting up to 1300mm.
4. Special sizes are available upon request.
Specifications of ESL Self-elevator Stacker:
| Model | ESL50/11 | ESL50/13 | |
|---|---|---|---|
| Rated Capacity | kg | 500 | 500 |
| Max. Lifting Height | mm | 1100 | 1300 |
| Max. Self lifting height | mm | 1400 | 1600 |
| Fork length | mm | 585 | 585 |
| Fork width | mm | 1170 | 1170 |
| Max. fork width | mm | 590 | 590 |
| Mast height with lowered | mm | 1230 | 1430 |
| Motor | DC 12V 1.2Kw | ||
| Charger | 12V/10AH | ||
| Outline Size | mm | 1600x980x1230 | 1600x980x1430 |
| Self Weight | kg | 230 | 270 |
