1. Lifting by both manual and electric.
2. Lowering by manual.
3. Built-out battery and charger resulting in a low center of gravity and excellent manoeuvrability.
4. Conforms to EN1757-4 and EN1175.
5. Powered by 12 voltage battery, Driven by American "Monarch" pump station or French "HPI" Pump station.
6. Used as both a work table and pallet truck.
7.10-12 seconds pumping from the bottom to the top.
8. safety overload system prevents the truck from being used beyond its rated capacity.
9. The Handle can be restored to its upright position automatically once you let it free.
10. Lifting motor power is: 1.1kw.
11. Easy placing of load to correct ergonomic work height.

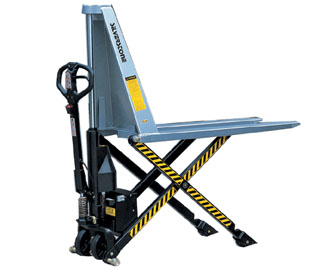

Specifications of NPHE High Lift Pallet Truck:
Model | NPHE1000 | NPHE1500 | |
---|---|---|---|
Capacity | (kg) | 1000 | 1500 |
Lowest Fork Height | (mm) | 85 | 85 |
Max. Fork Height | (mm) | 800 | 800 |
Fork Length X Fork Width | (mm) | 1140X520 or 1140X680 | 1100X520 or 1100X680 |
Diameter of front wheel | (mm) | Ø75X50 | Ø75X50 |
Diameter of Rear Wheel | (mm) | Ø150X50 | Ø150X50 |
Lifting time in Full Range(s) | 10/12 | 18 | |
Size of Fork | (mm) | 162X50 | 162X50 |
Descending Speed | (m/s) | <0.1 | <0.1 |
Motor Working Voltage | (v) | 12 | 12 |
Battery Volgage | (v) | 12 | 12 |
Electricity Volume | (A/h) | 63 | 63 |
Working pressure of Pump Station | (Mpa) | 15 | 21 |
Imput/output Voltage of Charger | (v) | 200-240/12 | 115-230/12 |
Service Weight | (kg) | 118 / 128 | 145 / 155 |
Max. Charging Current of Charger | (A) | 10 | 10 |
Packing Details | 4pcs/crate, crate size:193X60X72, 108pcs/20" | 4pcs/crate, crate size:193X76X72, 84pcs/20" |
Remark:
1, Fork length can be changing with special requirments.
