Suitable for 1-2 person to work upraised with better loading capacity;
Two masts are descended or ascended synchronously;
Entire lifting unit with guardrail offers such high intensity and convenient installation and disassembling that it could complete assembling or disassembling through lifting only once;
Easy maneuvering and with straddle legs similar to that of single mast aerial work platform;
Conforms to CE;
Available accessories: mast stand, auxiliary for step use, side-sheer unit;
Power Supply: Single phase AC as standard;DC or both AC as option.

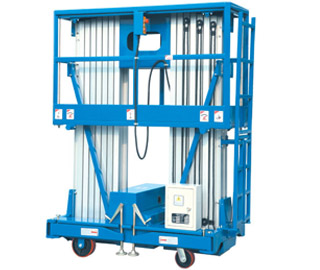

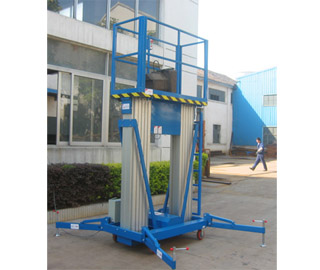

Specifications of GTWY Mast Aerial Work Platform (Double Masts):
Model No. | GTWY6-2000 | GTWY8-2000 | GTWY10-2000 | GTWY12-2000 | ||
---|---|---|---|---|---|---|
Mast | Dual Mast | |||||
Max. Platform Height | mm | 6000 | 8000 | 10000 | 12000 | |
Max. Machine Height | mm | 7050 | 9050 | 11050 | 13050 | |
Min. Platform Height | mm | 1800 | 1800 | 1800 | 2020 | |
Ground Clearance | mm | 80 | 80 | 80 | 80 | |
Lift Rated Capacity | kg | 300 | 300 | 250 | 200 | |
Platform Size | mm | 1210×600 | 1210×601 | 1450×600 | 1450×601 | |
Outspread Size | mm | 1880×1760 | 1880×1761 | 2220×1960 | 2250×2570 | |
Electrical Source | AC | v | 220-240 | 220-241 | 220-242 | 220-243 |
DC | v | 12 | 12 | 12 | 12 | |
Aneroid Battery | V/Ah | 2×12/75 | 2×12/76 | 2×12/77 | 2×12/78 | |
Charger | V/A | 12/15 | 12/16 | 12/17 | 12/18 | |
Lifting Motor | AC | V/kw | 220/0.75-1.5 | 220/0.75-1.6 | 220/0.75-1.7 | 220/0.75-1.8 |
DC | V/kw | 12/2.5 | 12/2.6 | 12/2.7 | 12/2.8 | |
Overall Length | mm | 1560 | 1560 | 1790 | 1790 | |
Overall Width | mm | 840 | 840 | 840 | 890 | |
Overall Height | mm | 1810 | 1810 | 1810 | 2030 | |
Overall | AC | Kg | 570 | 630 | 730 | 825 |
Net Weight | DC | kg | 610 | 670 | 770 | 865 |
