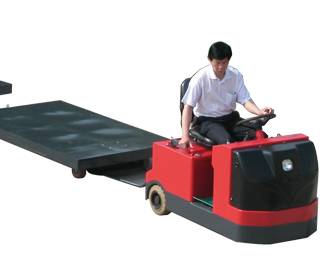

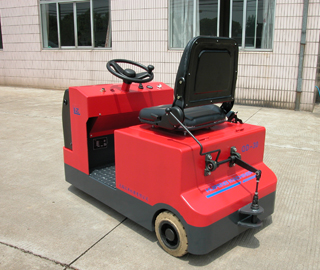

1. The all-new QD-B has automotive style controls making them every operator’s first choice.
2. It is equipped as standard with four wheel hydraulic drum brakes, all round suspension, regenerative braking and fully adjustable acceleration / deceleration.
3. The QD-B is capable of towing loads of up to 5 tonnes and with a battery change system which can be added with minimum costs to enable this tractor to work 24 hour shift patterns with ease. With the motor and controller being fully sealed this tractor is suitable to work in hostile conditions of wet or dust.
Specifications of QD-B Seated Towing Tractor:
Model No. | QD-20B | QD-30B | QD-50B | ||
---|---|---|---|---|---|
Towing Capacity | kg | 2000 | 3000 | 5000 | |
Driving Motor | W | DC-24V-2000W Seperated Excited S2 60min |
DC-24V-2000W Seperated Excited S2 60min. |
DC-24V-3000W Seperated Excited S2 60min. |
|
Battery | D-240A 24V | D-300A 24V | D-350A 36V | ||
Travel Speed | km/h | 0~7 | 0~7 | 0~7 | |
Controller Type | MOSFET | MOSFET | MOSFET | ||
Working Time | Hours | 6 | 6 | 6 | |
Min. Turning Radius | mm | R | 1000 | 1380 | 1380 |
Operation Type | Rider seated | Rider seated | Rider seated | ||
Min. under-clearance | mm | 85 | 85 | 85 | |
Steering Wheel | mm | White Rubber Φ267x127 | White Rubber Φ267x127 | White Rubber Φ267x127 | |
Drive Wheel | mm | Φ330x165 | Φ330x165 | Φ330x165 | |
Overall length | mm | L | 1490 | 1630 | 1700 |
Overall width | mm | W | 820 | 820 | 820 |
Overall height | mm | H | 1350 | 1350 | 1350 |
Service Weight | kg | 1150 | 1450 | 1580 |
Remark:
1. Special lifting height available.
2. Attachment available.
3. The specification in the table are for standard models only. For further information, please contact us.
