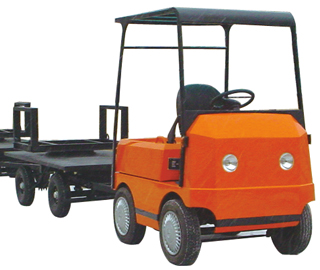

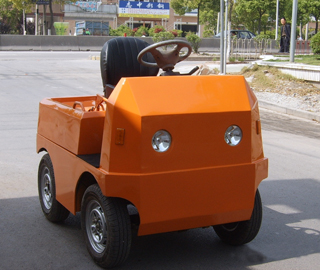

QDD-F 4-wheel Electric Towing Tractor PDF

Detailed parameters and tables

Features of QDD-F 4-wheel Electric Towing Tractor

1. The practical work table raised the auxiliary work efficiency effectively.
2. New exempts the maintenance motor with moisture-proof, the dustproof protection.
3. Electron steering provides the precise control.
4. The self-braking causes the operation to be safer.
5. Special design's the space lets driver's work be more relaxed comfortably.
6. Seater electric tow, Convenience operation.

Specifications of QDD-F 4:

Model				QDD-2F	QDD-5F	QDD-8F	QDD-10F
Operating Type				4-Wheels, Back Drive, Hydraulic Brake System, MOFSET, Hand Brake
Drawbar Pull			N	800	1100	1100	250N
Towing Capacity			kg	2000	5000	8000	10000
Drive Speed (full-loaded)			Km/h	11	10	8	8
Turning Radius		R	mm	2200	2200	2200	2200
Gradeability (full-loaded)			(%×m)	10%×12m	10%×12m	10%×12m	10%×12m
Load Distribute	front wheel		kg	420	492	492	630
Load Distribute	rear wheel		kg	520	608	608	1180
Service Weight			kg	940	1100	1100	1810
Load Rate (front : rear)				0.45：0.55	0.45：0.55	0.45：0.55	0.35：0.65
Motor Model				XQ-3-1	XQ-4.5	XQ-4.5	XQ-6.3
Rated Power			Kw	3	4.5	4.5	6.3
Rated Voltage			V	45	45	45	45
Rated Current			A	87	120	120	173
Battery			V/Ah	48/250	48/350	48/520	48/520
Rated rotate speed			EPM	1780	1600	1600	1200
Overall Length		L	mm	1700	1700	1700	2095
Overall Width		W	mm	1130	1130	1130	1080
Overall Height		H	mm	1300	1300	1300	1390
Wheel base		L1	mm	1030	1030	1030	1150
Tread	front wheel		mm	980	980	980	920
Tread	rear wheel		mm	1000	1000	1000	890
Ground Clearance		B	mm	110	110	110	142
Seat Height (above ground)		H1	mm	1050	1050	1050	1050
Drawbar Height (above ground)		H2		320	320	320	365
Tire	Type			penumatic	penumatic	penumatic	penumatic
	Front Wheel			145/70-R12/×2	145/70-R12×2	145/70-R12×2	6.50-10/×2
	Rear Wheel			145/70-R12/×2	145/70-R12×2	145/70-R12×2	6.50-10/×2

Optional Accessories:
1. Windshield; 2. Sun canopy; 3. All-weather cabin; 4. New Assembly Meter; 5. Safety Seat with Belt and Armrest; 6. Warning Lamp; 7. Spot Driving Device; 8. Solid Tire; 9. Beep; 10. CD player.
Remark:
1. Special lifting height available.
2. Attachment available.
3. The specification in the table are for standard models only. For further information, please contact us.
