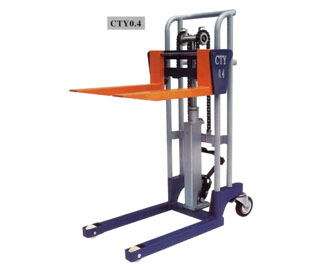

1. The CTYS is made of steel pipe, its’ light weight is ideal for application at places like chemical plants, stainless work and pharmaceutical industry.
2. Quick lift pump to save time and labor.
3. Easy to operate and conform to CE standard.
Specifications of CTYS Hand Stacker:
| Model | CTYS0.4 | CTYS0.5 | CTYS0.5D | |
|---|---|---|---|---|
| Lifting capacity | kg | 400 | 500 | 500 |
| Max lifting height | mm | 1200 | 1500 | 1900 |
| Fully loaded lifting Speed | mm/stroke | 30 | 45 | 14 |
| Fork height of lowered(mm) | mm | 90 | 90 | 90 |
| Front wheel | mm | Φ80 | Φ90 | Φ80 |
| Rear wheel | mm | Φ150 | Φ150 | Φ180 |
| overall length | mm | 1153 | 1335 | 1250 |
| Overall width | mm | 582 | 624 | 730 |
| Overall height | mm | 1650 | 1961 | 1550 |
| Self weight | kg | 128 | 180 | 215 |
| Fork length | mm | 640 | 640 | 1100 |
| min turning radius | mm | 1170 | 1250 | 1350 |
