Home » Products » Pallet Stacker » Manual Hydraulic Stacker » TFL Hand Stacker

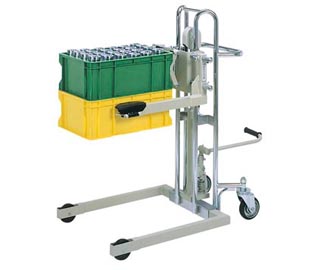

TFL Hand Stacker PDF

Detailed parameters and tables

Features of TFL Hand Stacker

1. Ideal for use in narrow aisles and confined spaces.
2. Perfect for all applications from pharmaceutical to catering, from packing line to food processing, from warehouse to office, kitchens, laboratories,retail outlets. etc.
3. Small turning radius make it easier to make sharp turns.
4. Controllable direction handle.
5. Has a dual pump for easier lifting.

Specifications of TFL Hand Stacker:

Model		TFL150-SL	TFL150-SM	TFL150-LL	TFL150-LM	TFL150-TL	TFL150-TM
Capacity	kg	150	150	150	150	150	150
Lifting height	mm	850	1200	787	1137	870	1220
Min. height	mm	70	70	70	70	90	90
Fork length	mm	500	500	650	650	510	510
Width between fork handles	mm	202	402	254	454	240	440
Length of fork handle	mm	280	280	570	570	200	200
Width between forks	mm	358	508	358	508	358	508
Overall length of stacker	mm	953	953	1045	1045	953	953
Overall width of stacker	mm	450	600	450	600	450	600
Overall height of stacker	mm	1134	1484	1134	1484	1134	1484
Net Weight	kg	51	56	50	55	50	55
