1. Simple, easy way to lift, lower and transport heavy loads with minimum effort.
2. Handle standard 40" x 48" pallets.
3. Features adjustable width forks and outrigger legs. Low effort hand winch equipped with automatic brake systems and adjustable length handle. Swivel casters feature foot brake to prevent movement.
4. Optional Steel Platform - Fits H140501. Solid steel construction, Fits over forks. Easily moved.

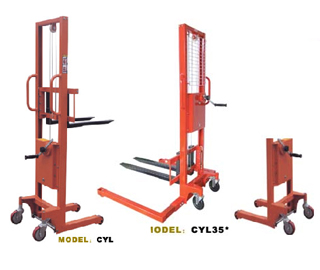

Specifications of CYL Hand Winch Stacker:
| Model | CYL-35 | CYL-35W | |
|---|---|---|---|
| Load Capacity | kg | 350 | 350 |
| Load Center | mm | 300 | 400 |
| Lifting Height | mm | 90~1500 | 76~1500 |
| Turning Radius | mm | 790 | 790 |
| Height/stroke | mm | 45 | 45 |
| Handle winch Power | kg | 7 | 7 |
| Overall length | mm | 960 | 1275 |
| Overall width | mm | 635 | 1390 |
| Overall Height | mm | 1855 | 1855 |
| Fork leg length | mm | 600 | 915 |
| Fork leg width | mm | 60 | 75 |
| Fork leg thickness | mm | 30 | 45 |
| Fork outside width | mm | 140~620 | 165~760 |
| Straddle height | mm | 90 | 76 |
| Front wheel | mm | ￠82x55 | ￠82x55 |
| Rear wheel | mm | ￠150x40 | ￠150x40 |
| Service weight | kg | 75 | 113 |
