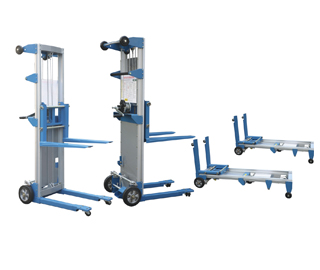

1. Disassembling and assembling is easy.
2. Can fit into smaller spaces when disassembled.
3. Equipped with wheels on the mast also allow it to be used as a trolley.
4. Light Alumium mast, easy for handling.
5. No any hydraulic problem, because it’s operated by winch.
6. The best brake function with special design is obvious.
7. Conforms to EN1757-1.
Specifications of WFH Hand Winch Stacker:
| Model | WFH-181 | SW-181 | WFH-277 | SW-277 | |
|---|---|---|---|---|---|
| Capacity Q | Kg | 181 | 181 | 227 | 227 |
| Load center c | mm | 305 | 305 | 305 | 305 |
| Max. fork height h1 | mm | 2500 | 2500 | 1250 | 1250 |
| Min. fork height h | mm | 90 | 50 | 90 | 50 |
| Fork length l | mm | 570 | 570 | 570 | 750 |
| Fork Width b5 | mm | 630 | 630 | 630 | 1100 |
| Net Weight | Kg | 60 | 66 | 51 | 57 |
