1. Ideal for loading and unloading trucks, positioning dies, or feeding material to presses.
2. Remote control, three light LED charge status indicator, and easy to read illuminated battery status voltmeter included.
3. Equipped with safety screen and floor lock.
4. With a minimally charged battery, unit can be used even while plugged in and recharging.

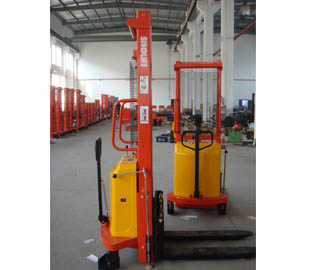

Specifications of CTD Semi-electric Stacker (single mast):
| Model | CTD1000-16 | CTD1500-16 | CTD2000-16 | |
|---|---|---|---|---|
| Rated Capacity(Q) | Kg | 1000 | 1500 | 2000 |
| Mast | Single Mast | |||
| Lifting Height(H) | Mm | 1600 | 1600 | 1600 |
| Fork Length(L) | Mm | 1000 | 1000 | 1000 |
| Fork Width(E) | Mm | 300~680 | 300~680 | 300~680 |
| Load Center(C) | Mm | 400 | 400 | 400 |
| Minimum Turning Radius(R) | Mm | 1350 | 1350 | 1350 |
| Lifting Motor | V/Kw | 12/1.5-1.6 | 12/1.5-1.6 | 12/1.5-1.6 |
| Battery | V/Ah | 12/120 | 12/120 | 12/120 |
| Charger | V/Ah | 12/15 | 12/15 | 12/15 |
| Overall Length(A) | Mm | 1670 | 1670 | 1670 |
| Overall Width(B) | Mm | 865 | 865 | 865 |
| Overall Height(H1) | Mm | 2060 | 2060 | 2060 |
| Net Weight | Kg | 340 | 362 | 388 |
