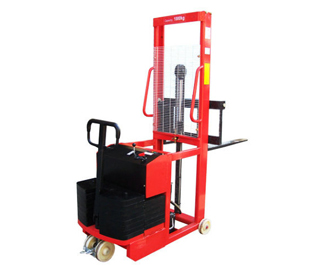

1. The semi-electric counterbalance stacker is designed without fork legs and it is convenient to use.
2. It can deal with both double faced pallets an single deck pallets.
3. With short body, this semi-electric stacker can make.
Specifications of SPN-B Counter Weight Stacker:
| Model | SPN1016-B | SPN1020-B | SPN1025-B | |
|---|---|---|---|---|
| Rated load Q | Kg | 1000 | ||
| Minimum fork height | mm | 75 | ||
| Maximum fork height | mm | 1600 | 2000 | 2500 |
| Minimum mast height | mm | 2050 | 1550 | 1800 |
| Fork length | mm | 800 | ||
| The total fork width | mm | 2100-800 | ||
| Body size (length × width) | mm | 2100×820 | ||
| Minimum turning radius | mm | 1200 | ||
| Lifting motor power | kw | 1.6 | ||
| Battery | V/Ah | 12/100 | ||
| Net weight | kg | 900 | 1000 | 1080 |
