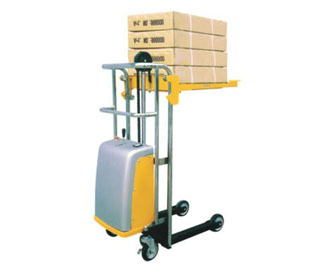

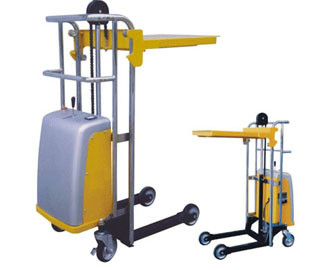

Features of EFP Electric Platform Truck

Conforms to CE Normal.
Two brakes increase safely.
Combination of stacker and lifting table.
Fully sealed & maintenance-free battery.
Lifting operations becomes easier and faster.
Conforms to EN1757-1 and EN1175-1.

Specifications of EFP Electric Platform Truck:

Model		EFP0412	EFP0415
Capacity Q	kg	400	400
Max. height h1	mm	1330	1630
Lifting height h3	mm	1000	1300
Min. platform height h13	mm	200	200
Max. platform height h3+h13	mm	1200	1500
Max. Width	mm	590	590
Platform length	mm	650	650
Platform width	mm	550	550
Steering roller	mm	150x40	150x40
Load roller	mm	150x45	150x45
Lifting speed without load	mm/sec	185	185
Lifting speed with load	mm/sec	80	80
Lowering speed without load	mm/sec	0~75	0~75
Lifting speed with load	mm/sec	0~115	0~115
Battery		DC12V.60AH	DC12V.60AH
Motor		DC12V, 700W	DC12V, 700W
