Conforms to CE Normal.
Two brakes increase safely.
Combination of stacker and lifting table.
Fully sealed & maintenance-free battery.
Lifting operations becomes easier and faster.
Conforms to EN1757-1 and EN1175-1.

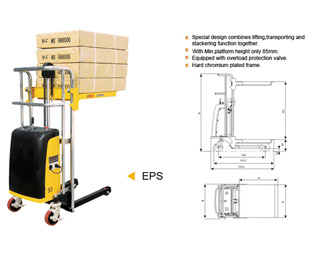

Specifications of EPS Electric Platform Truck:
| Model | EPS0412 | EPS0415 | |
|---|---|---|---|
| Capacity Q | kg | 400 | 400 |
| Max. height h1 | mm | 1425 | 1725 |
| Min. platform height h13 | mm | 85 | 85 |
| Lifting height h3 | mm | 1115 | 1415 |
| Max. platform height h3+h13 | mm | 1200 | 1500 |
| Max. Width | mm | 600 | 600 |
| Platform length | mm | 650 | 650 |
| Platform width | mm | 576 | 576 |
| Steering roller | mm | Φ127x40 | Φ127x40 |
| Load roller | mm | Φ75x40 | Φ75x40 |
| Size of fork e*s | kg | 650x110 | 650x110 |
| Lifting speed without load | mm | 185 | 185 |
| Lifting speed with load | mm/sec | 80 | 80 |
| Lowering speed without load | mm/sec | 0~75 | 0~75 |
| Lifting speed with load | mm/sec | 0~115 | 0~115 |
| Battery | DC12V.60AH | DC12V.60AH | |
| Motor | DC12V, 700W | DC12V, 700W |
