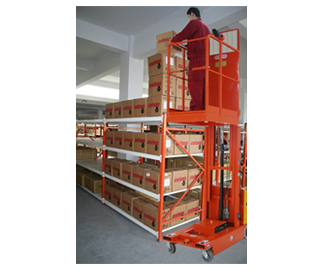

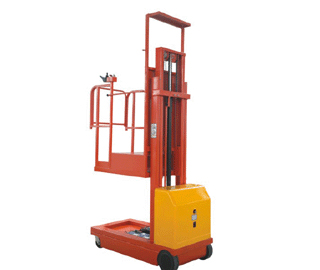

ZDYT Order Picker are mainly used for goods transportation in super-market and warehouse.
1. Electronic system imported directly from PG United Kingdom.
2. Battery imported from USA.
3. Driving wheels and balance wheels assembly to keep the safety.
4. Spraying plastics appearance.
5.2-3 days working time of one time charging.
6. With safety-falling equipment.
Specifications of ZDYT self-propelled Order Picker:
| Model | ZDYT300-3 | ZDYT300-3.5 | |
|---|---|---|---|
| Max. platform height | H (mm) | 3000 | 3500 |
| Max. overall height | H1 (mm) | 4450 | 5200 |
| Distance between pedestal and ground | H2 (mm) | 42 | 42 |
| Platform loading capacity | (kg) | 300 | 300 |
| Working platform size | L×N (mm) | 600×640 | 600×640 |
| Max. traveling speed (platform lowered) | Km/h) | 4 | 4 |
| Max. traveling speed(platform lifted) | (km/h) | 1.6 | 1.6 |
| Min. Tuming radius | (mm) | 1500 | 1500 |
| Max. climbing ability | (%) | 15-20 | 15-20 |
| Drive wheel size | (mm) | 230-250×80 | 230-250×80 |
| Castor size | (in) | 6 | 6 |
| Traveling motor | (v/kw) | 2×24/0.4-0.5 | 2×24/0.4-0.5 |
| Lifting motor | (v/kw) | 2/24 | 2/24 |
| Battery (service free) | (v/kw) | 2×12/100 | 2×12/100 |
| Battery charger | (v/A) | 24/20 | 24/20 |
| Overall length A | (mm) | 1550 | 1550 |
| Overall width B | (mm) | 700 | 700 |
| Overall height C | (mm) | 1950 | 2200 |
| Overall number | (kg) | 574 | 588 |
