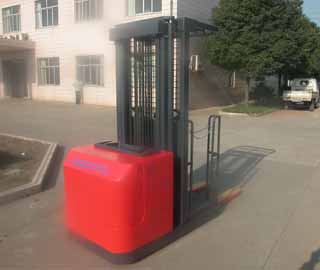

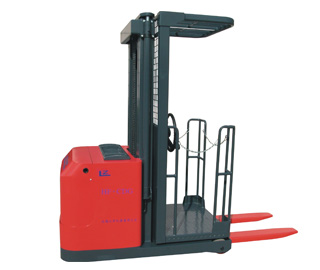

Operators rise with the load to pick directly from racks. Superior visibility and precise, responsive controls create a comfortable, highly efficient work platform.
A wide selection of lift heights and performance package fill all types of warehouse needs- from high level order picking to expansion of low-level pick locations with the economical order picker.
Specifications of CDG Full Electric Order Picker:
| Model | Unit | CDG500 |
|---|---|---|
| Load capacity | Kg | 500 |
| Wheels size | mm | Φ140*80 |
| Wheels material | PU | |
| Min. turning radius | mm | 1920 |
| Max. lifting height | mm | 2700 |
| Loading platform(forks)size | mm | 800*620 |
| Manned platform size(L*W) | mm | 840*600 |
| width of Single fork | mm | 150 |
| Lifting speed | m/min | 5 |
| Lowering speed | m/min | 4 |
| Pumping power | KW/V | 2.2/24 |
| Batteries (traction battery) | Ah/V | 210/24 |
| Driving wheel | KW/V | 1.2/24 |
| Walking speed | Km/h | 6 |
| Dimensions | mm | 1350*800*1800 |
| Net weight | Kg | 1230 |
