Be able to drive at maximum height of platform.
Maneuverable, extremely easy to use.
High safety and efficiency.
Imported top quality electric control system.
“C” section forks for greatest strength.
Supplied with battery and automatic charger.
Conforms to EN-280.

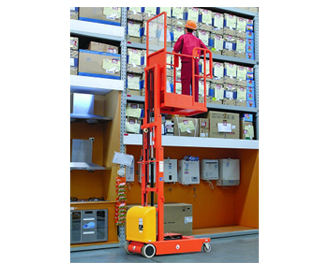

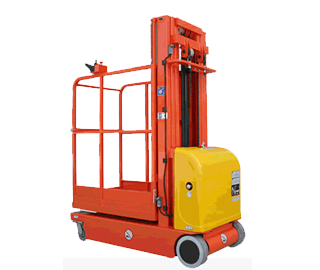

Specifications of ZDYT Self-propelled Order Picker (Trinal Mast):
| Model | ZDYT300-4 | ZDYT300-4.5 | |
|---|---|---|---|
| Max. platform height | H (mm) | 4000 | 4500 |
| Max. overall height | H1 (mm) | 6000 | 6500 |
| Distance between pedestal and ground | H2 (mm) | 50 | 50 |
| Platform loading capacity | (kg) | 300 | 300 |
| Working platform size | L×N (mm) | 900x640 | 900x640 |
| Max. traveling speed (platform lowered) | Km/h) | 4 | 4 |
| Max. traveling speed(platform lifted) | (km/h) | 1.1 | 1.1 |
| Max. climbing ability | (%) | 30 | 30 |
| Drive wheel size | (mm) | 230x80 | 230x80 |
| Castor size | (in) | 6" | 6" |
| Traveling motor | (v/kw) | 2x24/0.4 | 2x24/0.4 |
| Lifting motor | (v/kw) | 24/2.0 | 24/2.0 |
| Battery (service free) | (v/Ah) | 2x12/120 | 2x12/120 |
| Battery charger | (v/A) | 24/12 | 24/12 |
| Overall length A | (mm) | 1550 | 1550 |
| Overall width B | (mm) | 700 | 700 |
| Overall height C | (mm) | 1910 | 2070 |
| Overall number | (kg) | 664 | 675 |
