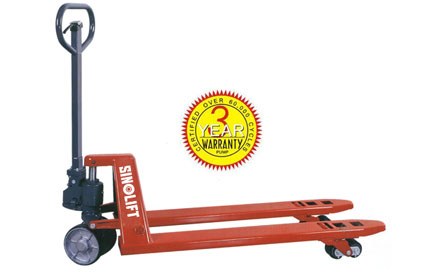

1. Simple and Easy Operation;Lifting movement via collapsible foot pedal;Sensitive lowering through sinking valve;Hand push drive;Overload protection via pressure valve.
2. Safe Operation and secure Working Conditions;Stable chassis with 2 frame rollers and 2 steering rollers.
3. Long Service Lift; Robust construction; Hard chromium plated frame; Hardened chromium plated ram.
4. Effortless Movement;Ball bearing rollers;Polyurethane rollers.
Specifications of NA:
| Model | NA15/NA20/NA25/NA30 | |||
|---|---|---|---|---|
| Capacity | kg | 1500/2000/2500/3000 | ||
| Max. Fork Height (H) | mm | 95/121/165/195/200 | ||
| Min. Fork Height (S) | mm | 35/51/65/75/80 | ||
| Fork Length (L) | mm | 1150/1220 | ||
| Overall Fork Width(B) | mm | 460 | 520 | 685 |
| Every Fork Width (E) | mm | 153 | ||
| Load Roller Diameter | mm | ∮78×70/∮78×100 | ||
| Nylon/Polyurethane | ||||
| Steering Wheel Diameter | mm | ∮200/∮180 | ||
| Nylon/Polyurethane/Rubber | ||||
| Net. Weight | kg | 84 | 89 | 92 |
| Quantities/20ft Container | pcs | 180 | 174 | |
Remark:
1.3500kg(NA35)/5000kg(NA50) available on request
