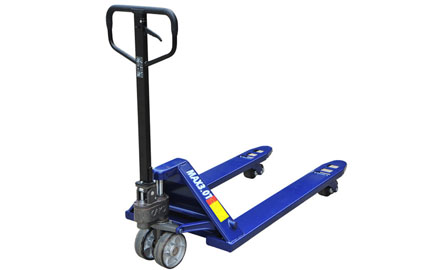

1. An economic alternative to the CAK, the CAK Transpallet Pallet Truck features a quality.
a. German design pump for long life and easy field servicing.
b. Durable, versatile and easy to use.
c. the CAK features an ergonomic design that reduces operator fatigue and downtime.
d. A 200 degree handle pivot provides exceptional maneuverability in compact areas and comes with standard polyurethane wheels and rollers for rolling ease.
e. CAK features a powder coat finish, robotic welds throughout, and grease fittings at all pivot points for easy maintenance.
f. This CAK can have 3 years warranty, the pump can be black color.
Specifications of CAK:
Model | CAK20 | CAK25 | CAK30 | CAK20W | CAK20L | ||||
---|---|---|---|---|---|---|---|---|---|
Capacity Q | kg | 2000 | 2500 | 3000 | 2000 | 2000 | |||
Min. fork height h | mm | 85 | 75 | 85 | 75 | 85 | 75 | 75/85 | |
Max. fork height h1 | mm | 200 | 190 | 200 | 190 | 200 | 190 | 190/200 | |
Steering wheel | mm | Φ200x50 | Φ180x50 | Φ200x50 | Φ180x50 | Φ200x50 | Φ180x50 | Φ180x50/Φ200x50 | |
Load roller Single | mm | Φ82x93 | Φ74x93 | Φ82x93 | Φ74x93 | Φ82x93 | Φ74x93 | Φ74x93/Φ82x93 | |
Load roller Tandem | mm | Φ82x70 | Φ74x70 | Φ82x70 | Φ74x70 | Φ82x70 | Φ74x70 | Φ74x70/Φ82x70 | |
Size of fork e*s | mm | 160x50 | 160x60 | 160x50 | 160x60 | ||||
Width overall forks B *1 | mm | 450/520/540/685 | 838 | 540/685 | |||||
Fork length I *2 | mm | 800/900/1000/1100/1150/1220 | 800/900/1100/1150/1220 |
