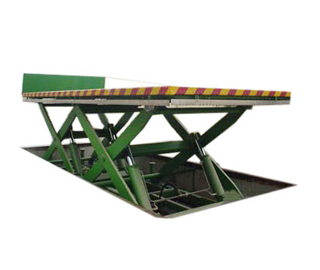

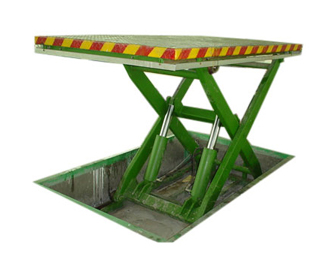

SJG Electric Cargo Lift Table

Features of SJG Electric Cargo Lift Table

The mechanistic form of optimized design effectively lowers the initial height of the lift table, and increases the lifting stroke to the maximum range.
The fairly strong rigidity of the lifting mechanism enables the lift table to have every high rise and fall steadiness.
The reliability of the lifting mechanism, and the stability of the hydraulic system make the lift table suitable for frequent operation.
The steel have undergone shot blast treatment, effectively improving the welding quality and paint adhesive force.
The precision ground hydraulic cylinder inner wall fitted with imported sealing elements ensure the hydraulic cylinder has very good sealing performance.
The compact type hydraulic station design can be integrated inside of most lift tables.

Specifications of SJG Electric Cargo Lift Table:

Model	Capacity (kg)	Lifting height H2(mm)	Rated height(mm)	Lift Height(mm)	Platform size(mm)	Elevating time(s)	Motor power(kw)	Self weight (kg)
Stationary Hydraulic Lift Table with Single forks
SJG1-1.7	1000	1700	2160	460	2500x2000	30	2.2	1200
SJG2-1.7	2000	1700	2180	480	2500x2000	30	3.7	1400
SJG3-1.7	3000	1700	2180	480	2500x2000	30	3.7	1600
SJG5-1.7	5000	1700	2280	580	2800x2000	30	7.5	2000
SJG10-1.7	10000	1700	2500	800	4000x2000	30	7.5	3000
Stationary Hydraulic Lift Table Double scissors
SJG1-3	1000	3000	3540	540	2000x2000	30	2.2	1300
SJG2-3	2000	3000	3600	600	2000x2000	30	3.7	1600
SJG3-3	3000	3000	3600	680	2000x2000	30	3.7	1800
Stationary Hydraulic Lift Table with Multi Scissors
SJG1-4	1000	4000	4680	740	2000x2000	40	2.2	1500
SJG2-4	2000	4000	4740	800	2000x2000	40	3.7	1800
SJG3-4	3000	4000	4800	800	2000x2000	40	5.5	2000
SJG1-5	1000	5000	5800	880	2000x2000	60	2.2	1700
SJG2-5	2000	5000	5880	960	2000x2000	60	3.7	2100
SJG3-5	3000	5000	5960	1020	2000x2000	70	5.5	2500
SJG1-6	1000	6000	7020	1120	2000x2000	70	3.7	2000
SJG2-6	2000	6000	7120	1280	2000x2000	70	5.5	2500
SJG3-6	3000	6000	7120	1520	2000x2000	100	5.5	3000
SJG1-9	1000	9000	10280	740	2500x2000	120	5.5	3500
SJG2-9	2000	9000	10520	800	2500x2000	50	7.5	4800
Stationary Hydraulic Lift Table with Multi Scissors / double line
SJG4-4	4000	4000	4740	880	4500x2000	60	5.5	3500
SJG4-5	4000	5000	5880	1120	6000x2200	60	5.5	4000
SJG5-5.5	5000	5500	6380	600	6000x2200	60	7.5	5000
