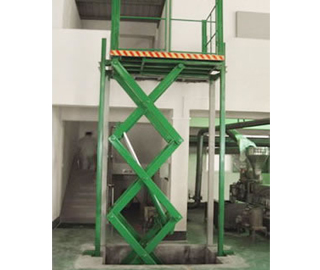

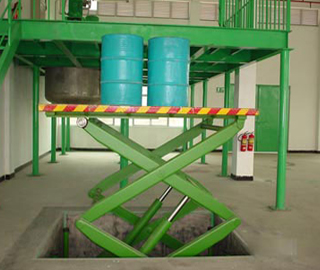

Hydraulic lift freight elevator is a multi-storey warehouse dedicated send and receive goods hydraulic lift. The design and production has been in accordance with customer requirements specifications. It's carrying capacity, built-oriented agencies to ensure stable balance of his rise. The freight elevator installation and easy operation and reliable freight elevators family are another advantages. It is the best alternative products in the factory warehouse.
Specifications of SJT Electric Cargo Lift Table
| Model | Rated | Stoke | Min. | Max. | Platform | Lifting | Power | Weight |
|---|---|---|---|---|---|---|---|---|
| capacity | height | height | size | time | ||||
| Unit | kg | m | m | m | m | s | kw | kg |
| SJT0.2-4 | 200 | 4 | 0.742 | 4.742 | 1.1×0.87 | 41 | 1.5 | 620 |
| SJT0.5-4 | 500 | 4 | 0.75 | 4.75 | 2.3×0.92 | 30 | 3 | 1400 |
| SJT0.9-0.12 | 900 | 2.12 | 0.438 | 2.558 | 1.76×0.84 | 41 | 1.5 | 1000 |
| SJT1.0-2.7 | 1000 | 2.7 | 0.45 | 3.15 | 2.5×1.6 | 27 | 5.5 | 1800 |
| SJT1.0-3.0 | 1000 | 3 | 0.782 | 3.782 | 1.6×1.2 | 29 | 5.5 | 1600 |
| SJT1.0-3.3 | 1000 | 3.3 | 0.632 | 3.932 | 1.38×1.08 | 48 | 3 | 920 |
| SJT1.0-4.0 | 1000 | 4 | 0.755 | 4.755 | 2.2×1.8 | 48 | 5.5 | 1900 |
| SJT1.0-4.8 | 1000 | 4.8 | 0.782 | 5.582 | 2.0×1.5 | 50 | 3 | 2000 |
| SJT1.0-6.3 | 1000 | 6.3 | 0.836 | 7.136 | 3.0×2.385 | 96 | 5.5 | 3280 |
| SJT1.0-7.9 | 1000 | 7.9 | 0.984 | 8.884 | 2.2×1.8 | 80 | 5.5 | 3100 |
| SJT1.8-2.12 | 1800 | 2.12 | 0.44 | 2.56 | 1.76×0.84 | 27 | 3 | 1200 |
| SJG2.0-2.7 | 2000 | 2.7 | 0.643 | 3.343 | 1.6×1.4 | 40 | 3 | 1300 |
| SJT2.0-3.7 | 2000 | 3.7 | 0.616 | 4.136 | 2.0×1.2 | 46 | 5.5 | 1300 |
| SJT2.0-4.2 | 2000 | 4.2 | 0.967 | 5.167 | 1.65×1.5 | 81 | 3 | 1800 |
| SJT2.0-4.5 | 2000 | 4.5 | 0.85 | 5.35 | 2.5×2.2 | 64 | 5.5 | 3300 |
| SJT2.0-6.3 | 2000 | 6.3 | 0.918 | 7.218 | 2.8×2.0 | 96 | 5.5 | 3400 |
| SJT3.0-4.5 | 3000 | 4.5 | 0.85 | 5.35 | 4.5×2.16 | 95 | 5.5 | 3000 |
| SJT3.0-6.3 | 3000 | 6.3 | 1.14 | 7.44 | 4.5×1.5 | 59 | 15 | 5000 |
| SJT3.0-6.4 | 3000 | 6.4 | 0.91 | 7.31 | 7.0×4.0 | 56 | 15 | 8500 |
