Safety clearance between scissors to prevent from trapping.
Installed aluminum safety bar to prevent from trapping while descending.
Built-in relied valve and compensation flow control valve to fulfill overload protection and control
lowering speed.
There is safety valve to stop the table or keep slow descending in case of hose burst.
Self-lubricating bushing in all pivot points to prolong the lifespan.

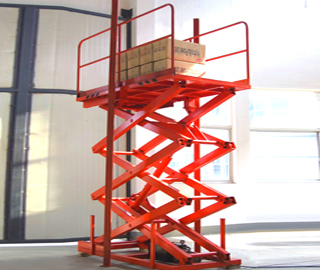

Specifications of QSJT Light Duty Electric Cargo Lift Table
| Model | QSJT0.5-3 | QSJT0.5-4 | QSJT0.5-6 | QSJT0.5-7.5 | QSJT0.5-9 | |
|---|---|---|---|---|---|---|
| Capacity | kg | 500 | 500 | 500 | 500 | 500 |
| Raised Height | mm | 3000 | 4000 | 6000 | 7500 | 9000 |
| Min Height | mm | 700 | 750 | 750 | 870 | 1000 |
| Max Height | mm | 3700 | 4750 | 6750 | 8370 | 10000 |
| Platform Size | mm | 1800×1200 | 2300×1200 | 2300×1200 | 2300×1200 | 2300×1200 |
| Lifting time | s | 40 | 42 | 80 | 80 | 80 |
| Power | kw | 2.2 | 3 | 3 | 3 | 3 |
| N. W | kg | 790 | 1020 | 1360 | 1530 | 1700 |
