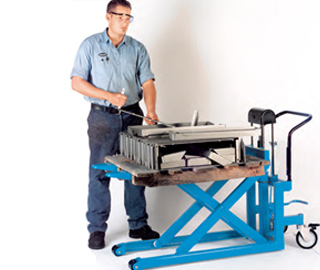

Ideal for your loading and unloading operations, well-welded heavy steel frame and forks handle weighty load with easy.
Combination of pallet truck and lift table.
Easy-to-use control lever, plus two parking brakes on steering wheels increase safety.
Conforms to EN 1757-4.
Specifications of QSD Manual Skid Lifter:
| Model | QSD500 | QSD1000 | |
|---|---|---|---|
| Load Capacity | kg/lbs | 500kg 1100lb | 1000kg 2200lb |
| Lowest Height | mm | 90 | 90 |
| Max. Height | mm | 620/900 | 900 |
| Fork Length | mm | 860/1100 | 550/685 |
| Fork Width | mm | 550/685 | 550/685 |
| Single Fork Width | mm | 160 | 160 |
| Height of Handle | mm | 1030 | 1030 |
| Net. Weight | kg | 84/112 | 90/118 |
| Packing Dimensions | mm | 2200x780x1100 | 2200x640x1100 |
| 685x1100 | 550x1100 | ||
| Q'ty in one 20'Container | units | 72/56 | 72/56 |
