Home » Products » Industrial Equipment » Skid Lifter » PE & PEL Electric Skid Lifter

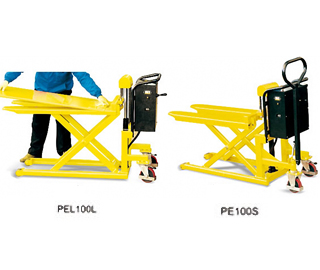

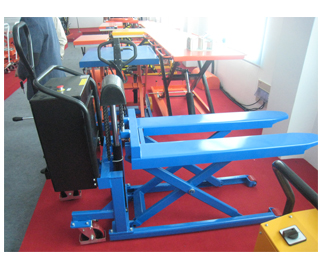

Features of PE & PEL Electric Skid Lifter

Electric Skid Lifter PE/PEL series.
Easier handling to minimize back strain.
Better feature - it can move when raised.
Combination of pallet truck and lift table.
Ideal for your loading and unloading operations.
Continuous-welded heavy steel frame and forks handle weighty loads with ease.
Easy-to-use control lever plus two parking brakes on steering wheels increase safety.
Reliable power unit for easier and faster lifting.
Additional steering handle on 1000kg models for easier and more comfortable turning.
Conforms to EN1757-4 and EN1175.

Specifications of PE & PEL Electric Skid Lifter:

Model		PE50S	PE50L	PE100S	PE100L	PEL50S	PEL50L	PEL100S	PEL100L
Type		Without platform				With platform
Capacity	(kg)	500		1000		500		1000
Load Centre	(mm)	560				560
Max. Fork Height	(mm)	830				833
Min. Fork Height	(mm)	85				88
Fork/Platform Length	(mm)	1115				1115
Fork/Platform Width	(mm)	526	690	526	690	538	703	538	703
Overall Length	(mm)	1620		1740		1620		1740
Overall Width	(mm)	580	740	550	720	586	752	556	726
Overall Height	(mm)	1050		1307		1050		1307
Steering Wheel	(mm)	Ø150x40				Ø150x40
Front Roller	(mm)	Ø70x68				Ø70x68
Power Unit	(KW)	1.6				1.6
Battery	(V)	12				12
Working Cycles	(s)	100		80		100		80
Net Weight	(kg)	172	176	174	180	180	184	182	188
