Correctly position skids and work surfaces to minimize back strain.
Combination of pallet truck and lift table.
Ideal for your loading and unloading operations.
Continuous-welded heavy steel frame and forks handle weighty loads with ease.
Easy-to-use control lever, plus two parking brakes on steering wheels increase safety.
A foot-operated pedal for easier and faster lifting.
Additional steering handle on 1000kg models for easier and more comfortable turning.
Conforms to EN 1757-4.

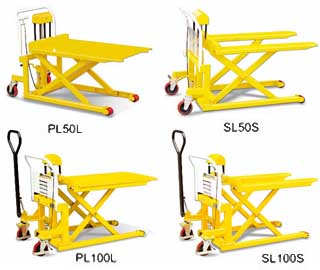

Specifications of SL & PL Manual Skid Lifter:
| Model | SL50S | SL50L | SL100S | SL100L | PL50S | PL50L | PL100S | PL100L | |
|---|---|---|---|---|---|---|---|---|---|
| Type | without platform | with platform | |||||||
| Capacity | (kg) | 500 | 1000 | 500 | 1000 | ||||
| Max. Fork Height | H(mm) | 830 | 833 | ||||||
| Min. Fork Height | h(mm) | 85 | 88 | ||||||
| Fork/Platform Length | L(mm) | 1115 | 1115 | ||||||
| Fork/Platform Width | W(mm) | 526 | 690 | 526 | 690 | 538 | 703 | 538 | 703 |
| Pump Strokes to Max. Lift | 45 | 75 | 45 | 75 | |||||
| Front Roller | (mm) | Ø70x68 polyurethane | Ø70x68 polyurethane | ||||||
| Steering Wheel | (mm) | Ø150x40 polyurethane | Ø150x40 polyurethane | ||||||
| Overall Length | L1(mm) | 1550 | 1640 | 1550 | 1640 | ||||
| Overall Width | W1(mm) | 526 | 691 | 687 | 852 | 538 | 703 | 693 | 858 |
| Overall Height | H1(mm) | 1012 | 1307 | 1012 | 1307 | ||||
| Net Weight | (kg) | 107 | 116 | 135 | 138 | 122 | 136 | 150 | 158 |
