1. The CQY0.5 is with special C type mast which is more stable and strong.
2. Quick lift pump to save time and labor.
3. Easy to operate controller.

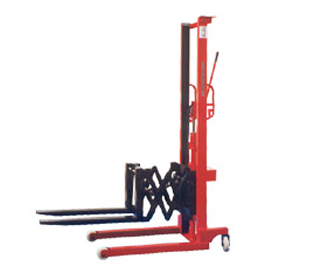

Specifications of CQY0.5 Manual Reach Stacker:
| Model | CQY0.5 | |
|---|---|---|
| Lifting capacity(kg) | 500 | |
| Max lifting height(mm) | 1500 | |
| Fully loaded lifting speed(mm per stroke) | 45 | |
| Fork height of lowered(mm) | 90 | |
| Wheel(mm) | load wheel | Φ90 |
| steering wheel | Φ150 | |
| overall dimension(mm) | L | 1335 |
| W | 624 | |
| H | 1961 | |
| Fork fore-shift(mm) | 300 | |
| Fork length(mm) | 640 | |
| min turning radius(mm) | 1250 | |
| Self weight(kg) | 180 | |
