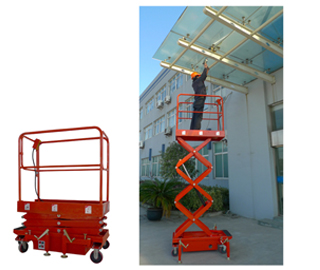

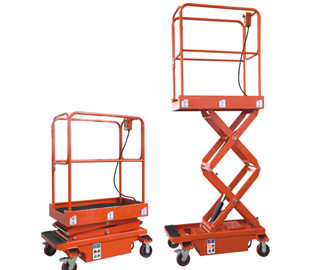

Mini Mobile Scissor Lift Access Platform.
Code: SJY0.3-1.7.
Access Platforms-1.7m aerial platform lift height.
Electric compact aerial scissor lift work access platforms offer an economical solution for 1 person (240kg max lift capacity), when working at height.
The SJY0.3-1.7 access platforms models allow a 1.7M maximum platform lift height, with a working height of 3.73M.
Supplied with intergrated charger with a built in battery charge indicator.
Complete with levelling indicator and outriggers. v
Emergency down and stop buttons.
Supplied with 12 month LOLER certificate and CE certified.
This unit will pass through a standard door frame.
Access platforms are ideal equipment for maintenance work in warehouses, shopping centers, hospitals, schools and other areas, were health and safety are even more important.
More versatile than a mobile tower as its height can be adjusted with the touch of a button.
Specifications of SJY (MINI) Mini Scissors Access Aerial Work Platform (New):
Specifications | SJY0.3-1.7(mini) | SJY0.3-3(mini) | |
---|---|---|---|
Max. Platform Height | mm | 1700 | 3000 |
Min. Platform Height | mm | 520 | 630 |
Platform Size (LxWxH) | mm | 1000x530 | 1150x600 |
Platform Extend Length | mm | / | / |
Lift Rated Capacity | kg | 300 | 300 |
Platform Extend Capacity | kg | ||
Support leg Spread Size | mm | // | // |
Elevating Time | s | 10 | 33 |
Lowering Time | s | 7 | 30 |
Lift Motor | V/kw | 12/0.8 | 12/0.8 |
Charger | V/A | 12/15A | 12/15A |
Votagle | V | // | // |
Overall Length | mm | 1140 | 1280 |
Overall Width | mm | 700 | 740 |
Overall Height | mm | 1620 | 1650 |
Service Weight | kg | 280 | 360 |
