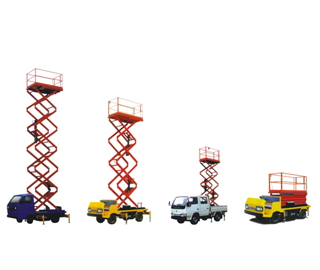

SJZ Vehicle Carrying Aerial Work Platform

Features of SJZ Vehicle Carrying Aerial Work Platform

The vehicle power is utilized, no need for external connection to the motive force electric power supply.
The control button for operating rise and fall is fitted both on the platform and not the pedestal.
The hydraulic automatic telescopic support legs or the manual operation support legs can be configured according to customer’s requirements.
Vehicles can be selected as the corollary equipment.

Specifications of SJZ Vehicle Carrying Aerial Work Platform:

Model	Capacity (kg)	Raised Height (mm)	Lowered Height (mm)	Platform Size (mm)	Elevating Time (S)	Motor Rate (kw)	Voltage (V)	Service Weight (kg)
SJZ 0.3-6	300	6000	950	1780×840	30	1.1	DC-24v	1500
SJZ 0.5-6	500	6000	950	1780×840	32	1.5	DC-24v	1550
SJZ 0.6-7.2	600	7200	1350	2100×1000	48	1.5	DC-40v	2500
SJZ 0.3-9	300	9000	1500	2350×1200	76	1.5	DC-40v	2700
SJZ 0.5-9	500	9000	1600	2000×1000	73	1.5	DC-40v	2800
SJZ 0.3-11	300	11000	1600	2100×1200	76	1.5	DC-40v	3000
SJZ 0.5-11	500	11000	1600	2100×1200	73	1.5	DC-40v	4200
SJZ 0.3-14	300	14000	1800	2600×1500	97	3	DC-40v	4500
SJZ 0.3-16	300	16000	1980	2600×1500	100	3	DC-40v	4800

OPTIONAL PARTS OF THE LIFT TABLE
1. Power supply come from the battery operated vehicles or engine pwered automobile.
2. Retractable platform is available for bigger scope of aerial work.
3. Superelastic cushion tire is optional.
