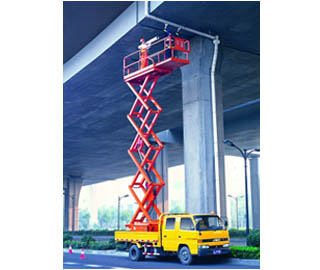

The product has passed the CE certification and is mainly applied in construction site, power, communication, airport, conference and exhibition center, port, etc. It is reliable.
The platform can be extended horizontally.
The recharge will restrict the rising of the platform.
There are two controllers for ascending and descending.
The emergent drop will be locked.

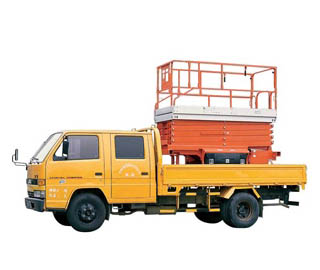

Specifications of JCPT Vehicle Carrying Aerial Work Platform:
| Model No. | JCPT8 | JCPT9 | JCPT11 | |
|---|---|---|---|---|
| Max. Platform Height | mm | 8000 | 9000 | 11000 |
| Max. Machine Height | 9090 | 10090 | 12090 | |
| Min. Platform Height | 1135 | 1260 | ||
| Lift Rated Capacity | kg | 550 | 500 | 450 |
| Platform Extend Capacity | 112 | 100 | 100 | |
| Platform Size | mm | 2506×1120×1220 | ||
| Platform Extend Length | 1270 | |||
| Lifting Motor | v/kw | 3/24 | ||
| Battery | v/Ah | 2×12/120 | ||
| Charger | v/A | 2024-12-20 | ||
| Overall Length | mm | 2700 | ||
| Overall Width | 1330 | |||
| Overall Height | 2225 | 2350 | ||
| Overall Net Weight | kg | 1740 | 1750 | 1860 |
