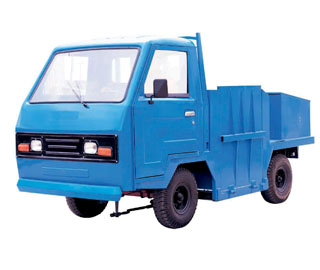

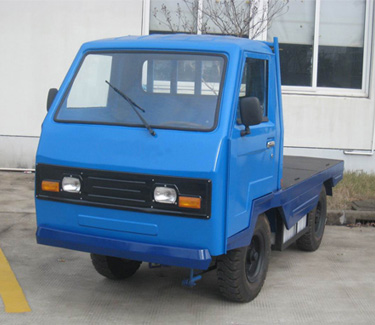

SH-BD-M Burden Carrier

Features of SH-BD-M Burden Carrier:

SINOLIFT Platform Trucks are widely used for transporting non-palletized loads in big industrial plants, warehouses, post offices, hospitals, etc.
SINOLIFT Platform Trucks are designed to provide comfort to their users. Easy to maintain, they are available with advanced features that make them convenient for use.
Additionally, our trucks have a double platform, which makes them more efficient to carry maximum amount of lightweight goods. Also, their steering axle is designed in such a manner that it ensures constant road grip. Today, we are counted among the key Heavy Duty Platform Trucks Manufacturers and Suppliers in China.
SINOLIFT MHE electric platform trucks are suitable for driving in stores, ware houses, large industries and airports. It is specially constructed for non-standard and non palletised material movements between two locations. It is built with high ground clearance and solid rubber wheels to operate both in and out side the plant.
SINOLIFT MHE Electric platform trucks modular electrical system allows for ease of maintenance, thereby reducing your operating and maintenance costs. Our electric platform trucks can be equipped with a ladder rack, tool boxes, tool cabinets, and a workbench and is an excellent choice for any maintenance application. Features like seat interlock, high pedal disable, and mechanical or hydraulic brakes provide maximum safety during daily operations.
All these features with factory equipped options to ensure highest quality standards, makes electric platform trucks the best value for your utility.

Specifications of SH-BD-M Burden Carrier:

Model	1DB(-X)	2DB-X	2DB	3DB	BD2B	ZD2	4DBM	5DBM	BD3M
Model	*	*	*	*	BD2B	ZD2	4DBM	5DBM	BD3M
Rated Load Capacity (Kg)	1000	2000	2000	3000	2000	2000	4000	5000	3000
Platform Size (L*W)	1400*1000	1630*1150	2180*1350	2400*1350	2000*1400	2080*1400	2240*1400	2500*1400	2240*1400
Min. Height (mm)	560	680	700	820	700	820	820	720	820
Outline Size (L*W)	2400*1000	2650*1150	3540*1350	3695*1350	3360*1400	3800*1400	3540*1400	3820*1400	3540*1400
Front Wheel Thead (mm)	835	917	1060	1070	1060	1060	1070	1070	1070
Rear Wheel Thead (mm)	850	981	1085	1115	1085	1115	1115	1115	1115
Wheel Base (mm)	1135	1370	1800	1900	1560	1650	1900	2185	1900
Ground Clearance (mm)	100	120	120	140	120	120	140	120	140
Drive Speed without Load (KM/h)	10	15	12	12	18	18	18	18	18
Drive Speed with Load (KM/h)	8	12	10	10	15	15	15	11.5	15
Min. Turning Radius (mm)	3000	3400	4000	4500	3500	3500	3900	4100	3900
Parking Brake distance (M)	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5
Max. Gradeability (%*m)	5*12	5*12	5*12	5*12	10*12	10*12	5*12	5*12	10*12
Driving Motor (KW)	1.35	2.5	2.5	5	3	3	5	6.3	5
Driving Motor Rated Current (A)	78	78	78	139	83	83	139	173	139
Battery Voltage (V)	24	40	40	48	48	48	48	48	48
Battery Capacity (AH/5hr)	250	250	250	308	250	250	330	440	308
Tire	500-8	600-9	700-9	700-12	700-9	700-9	700-12	700-9	700-12
Controller	KP2-150	KP2-150	KP2-150	QPK-41/48N	KP2-150	KP2-150	QPK-41/48N	QPK-41/48N	QPK-41/48N
General Transmission Ratio.	7.51	7.51	7.51	11.32	11.69	11.32	11.32	11.32	11.32

Remark:
1, The "S" is meaning of another new design; the "X" is meaning of Narrow type.
2, The "M" is meaning of with Closed Cabin;the "CM" is meaning of with Half Closed Cabin.
3, The "C" is meaning of with long platform in the side; the "F" is meaning of with Calash Cabin.
4, “SHC” is meaning of with scissor lifting device; the “ZD” is meaning of with Load and Unload device.
