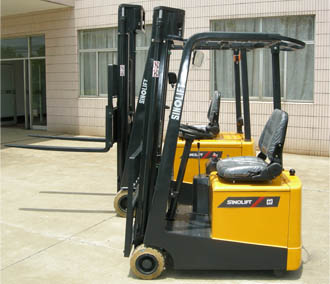

The distinctive features of the new CPD-F series electric three-wheel forklift feature:
DC motor.
Tight small and flexible structure.
Driving with seat is comfortable and convenient.
Safe braking is reasonable and reliable.
It is suitable for small tonnage and small occasion.
No pollution and no noise.
SPECIFICATIONS:
1) Rated capacity (kg): 500, 750, 1000, 1500.
2) Max. lifting height (mm): 3000, 4000, 4500, 4800, 5400.
3) Controller model: American CURTIS.

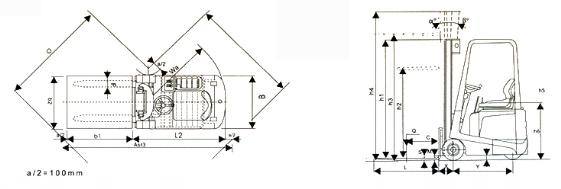

Specifications of CPD-F Mini Electric Forklifit:
| Sinolift L series 3-fulcrum mini electric forklift (3-wheeled ) | ||||||
|---|---|---|---|---|---|---|
| Model | CPD-0.5F | CPD-0.75F | CPD-1.0F | CPD-1.5F | ||
| Capacity (Q) | kg | 500 | 750 | 1000 | 1500 | |
| Load Center (©) | mm | 400(500) | 400(500) | 400(500) | 500 | |
| Lifting Height (h3) | mm | 3200 | 3200 | 3200 | 3000 | |
| Free Lifting Height (h2) | mm | 1600 | 1600 | 1600 | 1500 | |
| Fork Length | mm | 800(1000) | 800(1000) | 800(1000) | 1000(1150) | |
| Fork Sideswith | mm | 100 | 100 | 100 | 100 | |
| Type of Lifting | Electric Hydralic | |||||
| Speed of Lifting | mm/sec | >200 | >200 | >200 | >230 | |
| Speed of Lowering | m/min | adjustable | ||||
| Title of mast (α/β) | < | 2° /5° | 2° /5° | 2° /5° | 2° /5° | |
| Height of Mast Lowered (h1) | mm | 2080 | 2080 | 2080 | 2180 | |
| Height of Mast Extended (h4) | mm | 3680 | 3680 | 3680 | 3780 | |
| Height of Overhead Guard | mm | 1900 | 1900 | 1900 | 1980 | |
| Height of Seat from Ground | mm | 850 | 850 | 850 | 900 | |
| Length of the face of fork | mm | 1260 | 1260 | 1350 | 1738 | |
| Overallwidth | mm | 800 | 800 | 800 | 1018 | |
| Thread (Front wheel) | mm | 860 | 860 | 950 | 853 | |
| Thread (Rear wheel) | mm | 940 | 940 | 1030 | 1188 | |
| Wheelbase | mm | 660 | 660 | 660 | 740 | |
| Ground Clearance | mm | 90 | 90 | 90 | 90 | |
| Turing Radius | mm | 1150 | 1150 | 1240 | 1500 | |
| Min. Right angle aisle width | mm | |||||
| Steering System | Hydraulic | Hydraulic | Hydraulic | Hydraulic | ||
| Type of Drive | Electric Motor | |||||
| Drive speed(load/unload) | km/h | 6.5/7.8 | 6.3/7.3 | 6.0/7.0 | 6.0/7.0 | |
| Speed Control | MOFSET | |||||
| Gradeability | % | 8 | 8 | 8 | 8 | |
| Driving brake | Hydraulic Brake System | |||||
| Parking brake | Hand Brake | |||||
| Battery | 24v | D-210 | D-280 | D-320 | D-400 | |
| Weight of battery | kg | 240 | 320 | 390 | 420 | |
| Weight of truck | kg | 1250 | 1380 | 1550 | 2650 | |
| Driving Motor | kw | 3 | ||||
| lifting motor | kw | 5 | ||||
| Wheel (front/rear) | Solid Rubber | |||||
| Dimension of Front Wheel | φ267x127x165.1 | φ267x127x165.1 | φ267x127x165.1 | φ330x127x165.1 | ||
| Dimension of Drive Wheel | φ267x127x165.1 | φ267x127x165.1 | φ267x127x165.1 | φ330x127x165.1 | ||
Remark:
1. Special lifting height available.
2. Attachment available.
3. The specification in the table are for standard models only. For further information, please contact us.
