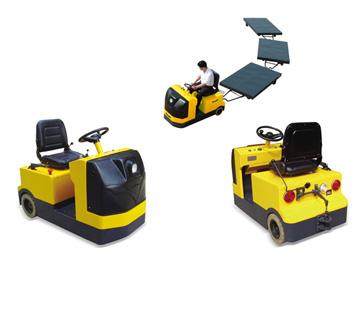

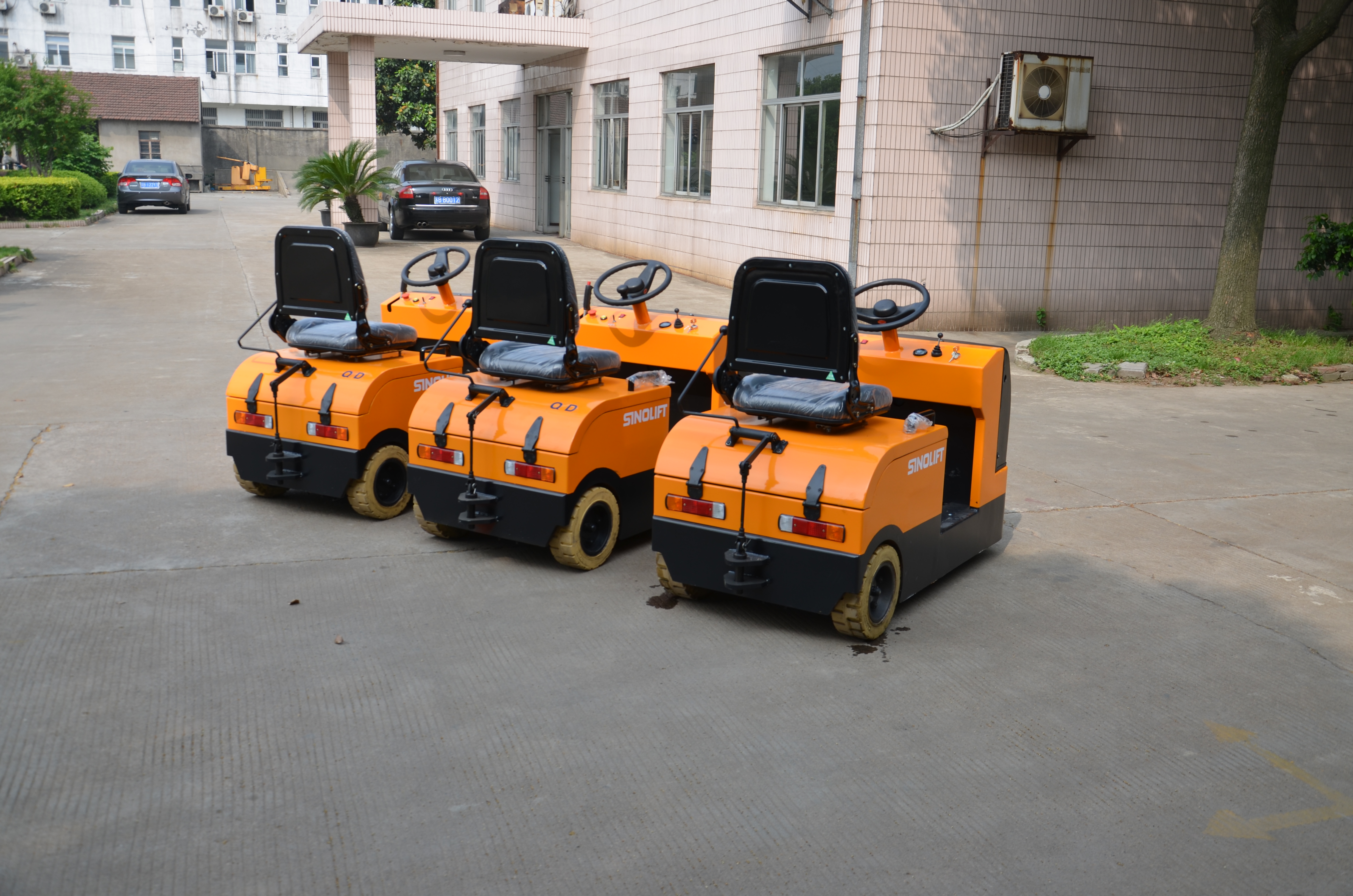

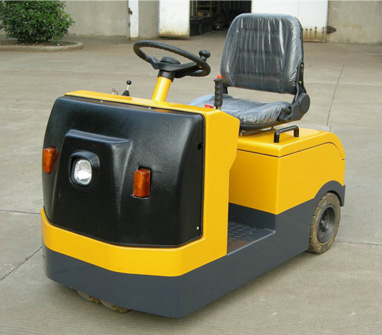

This tractor truck uses stepless speed regulating system controlled by MOS tube and is highly efficient and energy saving. It is comfortable for the operator to drive this truck.
Characterized by high carrying capacity, this tractor truck is an important carrier for conveying luggage or cargoes in airports, railway stations, factories, and postal services, etc.
Specifications of QD-30BH Towing Tractor:
| Model No. | QD-20BH | QD-30BH | QD-30BH(AC) ** | ||
|---|---|---|---|---|---|
| Towing Capacity | kg | 2000 | 3000 | 3000 | |
| Driving Motor | W | DC-24V-2000W | DC-24V-2000W | DC-24V-2200W AC | |
| Battery | D-240A 24V | D-300A 24V | D-300A 36V | ||
| Driving Speed | km/h | 0~6.5 | 0~6.5 | 0~7.5 | |
| Controller Type | CURTIS solid-state speed | CURTIS solid-state speed | C3-250A | ||
| Working Time | Hours | 6 | 6 | 6 | |
| Min. Turning Radius | mm | R | 1000 | 1850 | 1850 |
| Operation Type | Rider seated | Rider seated | Rider seated | ||
| Min. under-clearance | mm | 85 | 85 | 85 | |
| Steering Wheel | mm | White Rubber Φ267x127 | White Rubber Φ267x76 | White Rubber Φ267x76 | |
| Drive Wheel | mm | Φ330x165 | Φ330x114 | Φ330x114 | |
| Overall length | mm | L | 1490 | 1700 | 1700 |
| Overall width | mm | W | 820 | 800 | 800 |
| Overall height | mm | H | 1350 | 1240 | 1240 |
| Service Weight | kg | 1150 | 1450 | 1580 | |
