24volt Curtis fully programmable transistor control which provides smooth safe operation that can be tailored to your specific use and environment
Ergonomic handle with reversing switch, horn and dual "butterfly" thumb controls.
Rechargeable battery pack and external SCR charger.
Electromagnetic disk brake connected directly to the drive shaft.
Battery discharge indicator with hour meter.
Heavy duty pump motor with relief valve prevents system overloading.
One piece power head cover providing excellent maintenance access.
Key switch to limit access to approved personnel.

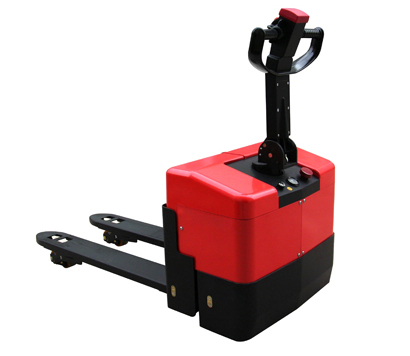

Specifications of SWP13 SWP15 Power Pallet Truck:
| Characteristic | Model | unit | LPT13-AC-EPS | LPT15-AC-EPS |
|---|---|---|---|---|
| Rated capacity | Q (kg) | 1300 | 1500 | |
| Power type | Electric | |||
| Type of operation | Pedestrian | |||
| Load center distance | c(mm) | 600 | ||
| Wheelbase | y(mm) | 1222/1272 | ||
| Wheel | Tire type | PU | ||
| Wheels, number (Driving wheel/Balance wheel/Loading wheel) | 1D+2B+4L | |||
| Dimensions | Overall height(with handle) | h14 (mm) | 1250 | |
| Overall length | l1 (mm) | 1670/1720 | ||
| Overall width | b1 (mm) | 724 | ||
| Max lifting travel | h3(mm) | 110 | ||
| Min fork ground clearance | h13 (mm) | 85 | ||
| Fork thickness | s(mm) | 44 | ||
| Fork width | e(mm) | 160 | ||
| Fork length | L(mm) | 1150/1200 | ||
| Standard fork ouside width | b5 (mm) | 540/685 | ||
| Min turning radius(pedal folding/unfolding) | Wa(mm) | 1285/1335 | ||
| Min Working aisle width pallet lengthwise(800*1200) | Ast (mm) | 2055 | ||
| Min Working aisle width pallet lengthwise(1000*1200) | Ast (mm) | 2145 | ||
| Performance | Travel speed, laden/unladen | km/h | 3.0/3.5 | |
| Lift speed, laden/unladen | mm/s | 50/60 | ||
| Lowering speed, laden/unladen | mm/s | 50/40 | ||
| Gradeability, laden/unladen | % | 5月7日 | ||
| Brake | electromagnetic/regenerative braking | |||
| Motor | Drive motor | KW | DC0.6 | |
| Lifting motor | KW | DC0.8 | ||
| Battery voltage/capacity | V/ Ah | 24/70 | ||
| Weight | Battery weight | kg | 48 | |
| N. W(including battery) | kg | 284 | ||
