Standard Features:
1. Heavy-duty Frame;The construction is welded by large-scale I beam and channel beam.
2. High-grade Hydraulic Cylinder;The piston rod is gdnded and hard-chrominm plated.
3. Compact Hydraulic Power Unit;First level quality in the area.
4. Operation Panel;Operated by a handle for Down/Up;Any position can be stopped when the handle released.
5. Tooling;Provide two kinds of tooling for option;One is for 2-piece dm tyre;Another is for 3-piece & 4-piece dm tyre.
6. Easy service & Heavy durability.
Optional Features:
Special Tooling RequirementAreAvailable;
Special Input Voltage Are Available.

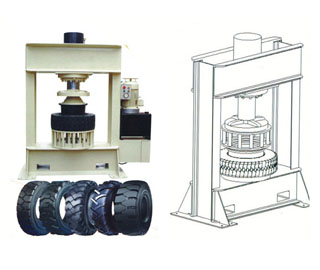

Applications:Assembly & Disassembly of Solid Tyre.
| Model | TP80 | TP120 | TP160 |
|---|---|---|---|
| Capacity | 80ton | 120ton | 160ton |
| Max. Type Dimension | 15inch | 20inch | 20inch |
| Total Length | 1640mm | 2090mm | 2090mm |
| Total Width | 700mm | 850mm | 850mm |
| Total Height | 2170mm | 2210mm | 2210mm |
| Operating Pressure | 21MPa | 25MPa | 33MPa |
| Cylinder Stroke | 400mm | 400mm | 400mm |
| Oil Tank Capacity | 30L | 30L | 30L |
| Electro-Motor | 5.5kw | 5.5kw | 7.5kw |
| Weight | 1100kg | 1510kg | 1610kg |
Tooling for 2-piece rim tyre
| Type | Max Tyre Diemension | Cage(pcs) | Push Ring(pcs) | Flange Ring(pcs) |
|---|---|---|---|---|
| TOOL-II | 20" | 4 | 11 | 6 |
Tooling for 3-piece & 4-piece rim tyre
| Type | Max Tyre Diemension | Cage(pcs) | Push Ring(pcs) | Flange Ring(pcs) |
|---|---|---|---|---|
| TOOL-IV | 20" | 6 | 6 | 3 |
