1. Hydraulic pump station makes the lifting of goods steady and powerful.
2. Drive wheel installed with reliable dish style braking has strong power and steady capability.
3. Electric control system reacts quickly and operates easily.
4. It has flexible linear heavy-duty design and tight structure, and it is suitable for narrow access and is flexible operated.
5. It is accorded to European standard of EN1757-1: 2001.

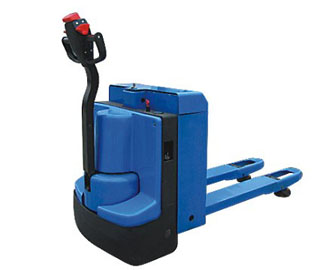

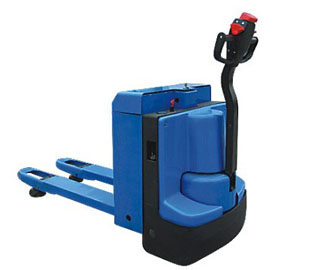

Specifications of CBE-S Electric Pallet Truck:
| Model | CBE2.0-S | |
|---|---|---|
| Capacity Q | kg | 2000 |
| Max. lifting height | mm | 205 |
| Min. terrain clearance | mm | 75 |
| Fork length l | mm | 1150 |
| Fork Width N | mm | 160 |
| Overal fork width | mm | 520/680 |
| Wheelbase Y | mm | 1420 |
| Turning Radius Wa | mm | 1652 |
| Front wheel | mm | Φ70x100 |
| Drive wheel | mm | Φ250x80 |
| Travering Motor | KW/V | 1.2/24 |
| Lifting Motor | KW/V | 0.8/24 |
| Storage Battery | AH/V | 210/24 182kg |
| Battery Charger | V/A | 24/25 |
| Overall Dimensions | mm | 1840x690x1300 |
| Traveling Speed (loaded/unloaded) | km/h | 3.6/5.4 |
| Lifting Speed | km/h | 21.8/30 |
| Lowering Speed | km/h | 50/53 |
| Gradebelity | % | 8 |
| Net Weight | kg | 325 |
