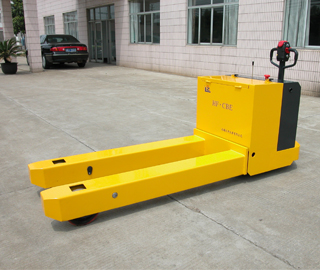

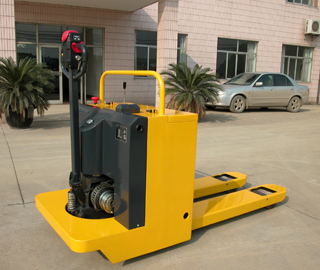

Heavy Duty Design-Export Model
1. Can be widely used in distribution centers, factories, supermarkets, warehouses and freight terminals.
2. Compact design combines with new technology, Safe, fast and easy operation.
3. Electric/hydraulic system offers a clean, noise free environment.
4. Variable speed controller for maximum efficiency, Power unit and drive wheel made in Europe.
5. Equipped with an electromagnetic type fail-safe braking system.
Specifications of CBE-Z Electric Pallet Truck:
| Model | CBE-30Z | CBE-35Z | CBE-50Z | |
|---|---|---|---|---|
| load capactiy | kg | 3000 | 3500 | 5000 |
| Load center | mm | 550 | 600 | 600 |
| Lifting Height (Min/Max fork height) | mm | 90-205 | 85-185 | 150-250 |
| Single fork width | mm | 180 | 170 (180) | 180(230) |
| Fork width * | mm | 550/685 | 550/685 | 1200/685 |
| Fork length | 1150/1200 | 1150/1200 | 1150/1200 | |
| Travel speed (laden/unladen) | km/h | 7.0/6.0 | 5.0/4.5 | 3.5/2.0 |
| Lifting speed (laden/unladen) | mm/s | 18/20 | 18/20 | 15/30 |
| Lowering speed (laden/unladen) | mm/s | 20/18 | 20/18 | 20/18 |
| Driving wheel | mm | φ250*90 | φ250*90 | φ260*150 |
| Load wheel | mm | φ80*68 | φ80*68 | φ100*100 |
| Balance wheel | mm | φ125 | φ125 | φ100*45 |
| Drive motor | w | 1500 | 1200 | 1800 |
| Pump power pack | w | 2200 | 3000 | 3000 |
| Battery | Ah | D-240 | D-240 | D-420 |
| Operator type | Walkie (standon platform) | Walkie (standon platform) | Walkie (standon platform) | |
| Control system | CURTIS AC | CURTIS AC | CURTIS AC | |
| Min. Turning radius | mm | 1200 | 1200 | 1300 |
| Overall dimensions | mm | 2100*800*1580 | 2050*780*1480 | 2250*880*1400 |
| Self weight | Kg | 750 | 550 | 1360 |
Remark:
1. Can be equipped with stand-on platform and armrest.
2. Germany origin imported REMA, FREI tiller is option.
3. The data of the items with * star can be chosen according to the demand of the customer.
4. The specification in the table are for standard models only, for further information, please contact with us.
